iOptron LiteRoc Mount AZ Pro GoTo

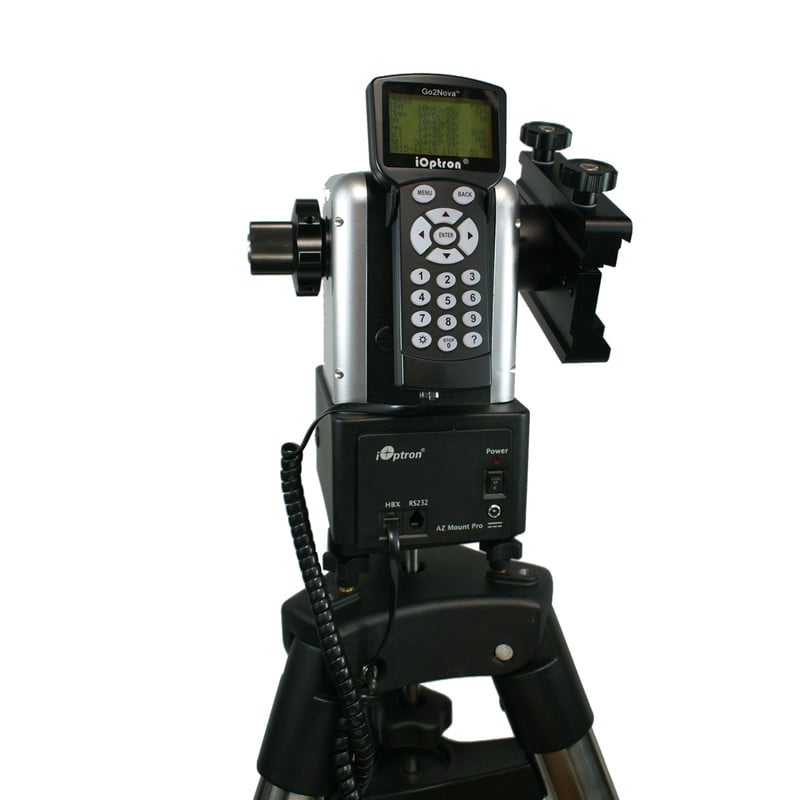

iOptron LiteRoc Mounting AZ Pro GoTo: alt-azimuth GoTo mounting on LiteRoc tripod

The iOptron AZ Mount Pro on the 1.75 inch LiteRoc tripod is the portable version of iOptrons alt-azimuth GoTo mount. It has a carrying capacity of 15 kg (33 lbs) with a head weight of only 5.9 kg. This allows it to accommodate refractors, Maksutovs, and Schmidt-Cassegrains up to approximately 9.25 inches.

The setup procedure is called Level and Go: level alignment with the built-in level, switching on and the mounting does the rest. GPS and position sensors determine location and orientation, after which the mounting itself rotates to a clear object. You center it and the alignment is complete.

Aligning without prior knowledge

You don't need a star chart or polar alignment. The mount itself chooses a clear target for alignment. This makes the AZ Mount Pro suitable for beginners with a serious telescope and for anyone who wants to get started quickly.

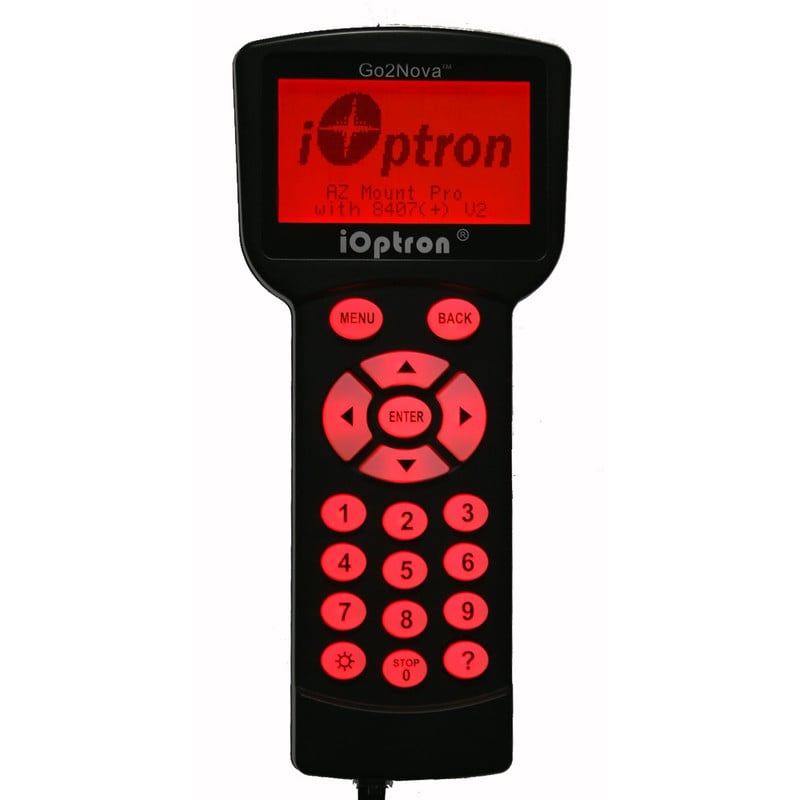

The Go2Nova 8407+ hand control has an illuminated screen with 8 lines and over 212,000 objects in the database. Wireless control is possible via the built-in WiFi with SkySafari or iOptron Commander; on the PC, the setup works with ASCOM.

One night on one charge

The internal lithium-ion battery (11.1 V, 4.4 Ah) provides up to 10 hours of operation at 20 °C. No separate battery packs or power banks are required. Charging is done indoors with the included adapter.

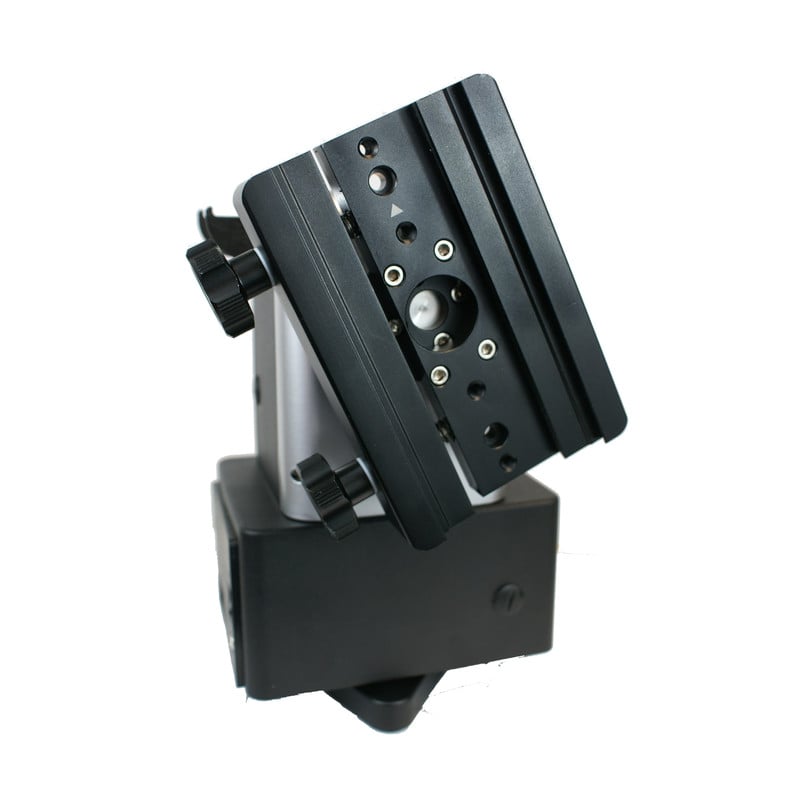

The double saddle accepts Vixen and Losmandy profiles. The retractable counterweight bar keeps the assembly compact during transport; the transport case for the head is included.

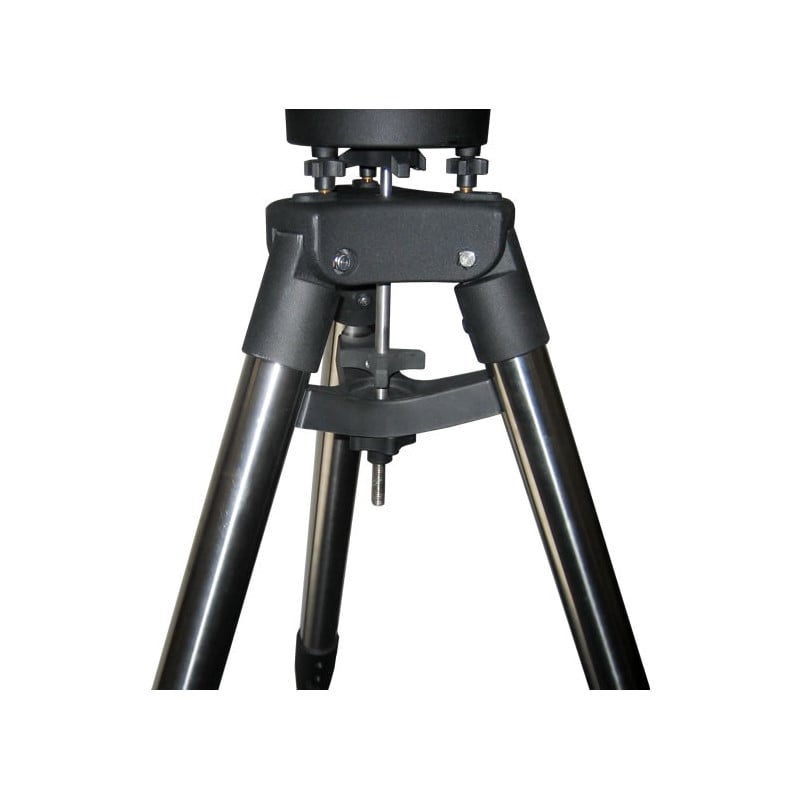

Stable LiteRoc tripod

The stainless steel LiteRoc tripod with 1.75-inch legs provides a sturdy base for visual use. Together with the silent stepper motors, the assembly proceeds smoothly and without shocks, even at high magnification.

Included

• AZ Mount Pro mount head with internal battery
• 1.75 inch LiteRoc tripod
• Go2Nova 8407+ hand controller
• Counterweight
• Battery charger and cables
• Mounting head transport case

Featured accessories

Keep a 4400 mAh backup battery handy for long nights, and mount the steel height adjustment levers for more comfortable adjustment with gloves in winter.

For whom yes and for whom no

• ✓ Visual observers who want to set up quickly and without bias
• ✓ For those who regularly observe on location: compact and lightweight for this carrying class
• ✗ Deep-sky photographers with long exposures: then choose an equatorial mount

Specifications

You can find more mounts and accessories for this brand at the iOptron brand page.
