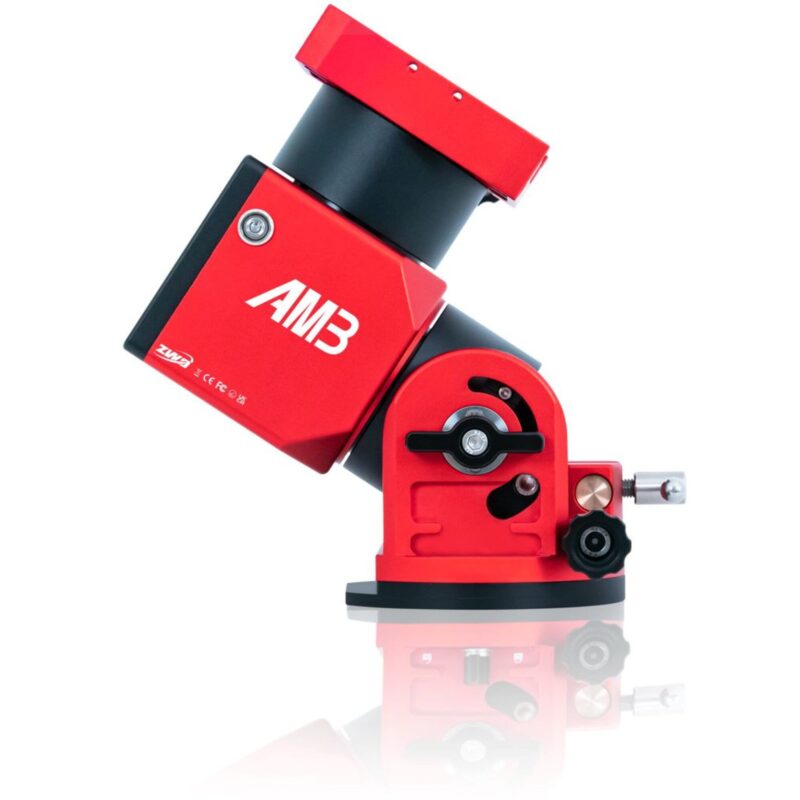

ZWO AM3 Harmonic Mount (without or with tripod): the most compact serious mount for on the go
The AM3 brings the harmonic drive technology of the AM5 line to an even more compact size: 4 kg (8.8 lb) own weight with a 8 kg payload without counterweight and up to 13 kg with counterweight. Enough for an apochromat with camera, filter wheel, and guider, in a mount that fits in a backpack.
Each AM3 is individually tested and comes with a guaranteed periodic error of less than 20 arcseconds. The backlash-free strainwave drive follows smoothly and precisely, exactly what long exposures demand.
Two modes, one switch
The AM3 works in equatorial mode for astrophotography and in alt-azimuth mode for visual work or planets. A status LED shows the active mode: red for EQ, green for AZ. This way, the same mount is your visual base during the week and your photo platform on weekends.
Via the ST-4 guide port and full ASIAIR integration, you can control the entire setup wirelessly, without a laptop or cables across the grass.
Choose your version
The AM3 is available as a standalone mount or bundled with the carbon fiber tripod at a more affordable price. Those who already own a tripod with the correct connection can opt for the standalone version; for a complete mobile base, the combination with the carbon fiber tripod is the logical choice.
With a PE160 or PE200 pier extension, you increase the freedom of movement around the zenith, especially with longer tubes.
Featured accessories
- ZWO Counterweight Bar for AM3 / AM5: recommended towards maximum load capacity
- ZWO PE160 Pier Extension: extra freedom at low and high viewing angles
- ZWO ASIAIR Plus or ASIAIR Mini: wireless control and guiding
- ZWO Mini Guidescope 30mm f/4: Lightweight guiding set for short focal lengths
For whom yes, for whom no
Hello traveling astrophotographers and balcony observers seeking maximum quality per kilogram.
Not For those who want to carry a heavy Newton or SC over 13 kg, choose the AM5N.
Specifications
| Type | harmonic drive mounting, switchable EQ and alt-azimuth |
| Carrying capacity | 8 kg without counterweight, 13 kg with counterweight |
| Own weight | 4 kg (8.8 lb) |
| Periodic error | guaranteed under 20 arcseconds (individually tested) |
| Mode indication | status LED: red EQ, green AZ |

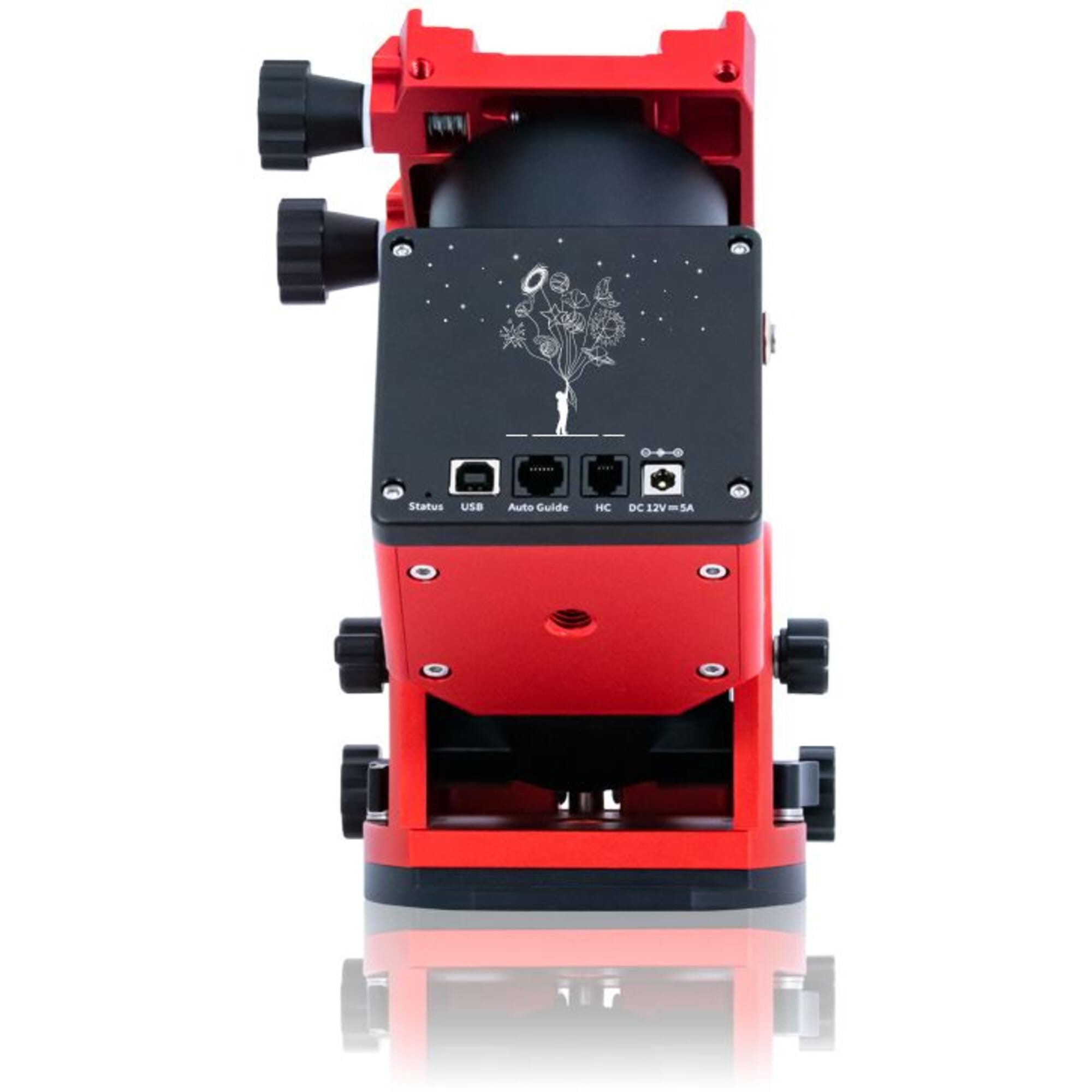

| Guiding | ST-4 port, full ASIAIR integration |
| Performances | Loose mounting or with carbon tripod |
The AM3 is the lightest route to play-free tracking within the mounting program of ZWO. Choose the version with or without a stand below.
