iOptron HAE69 Montering iMate met Handset: zware strain wave met iMate en handbediening

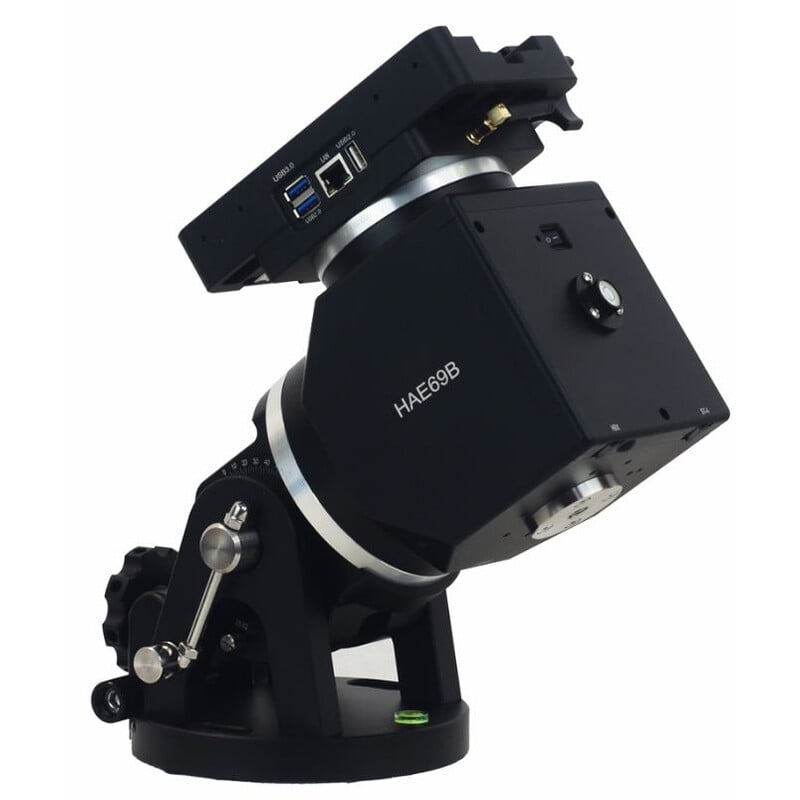

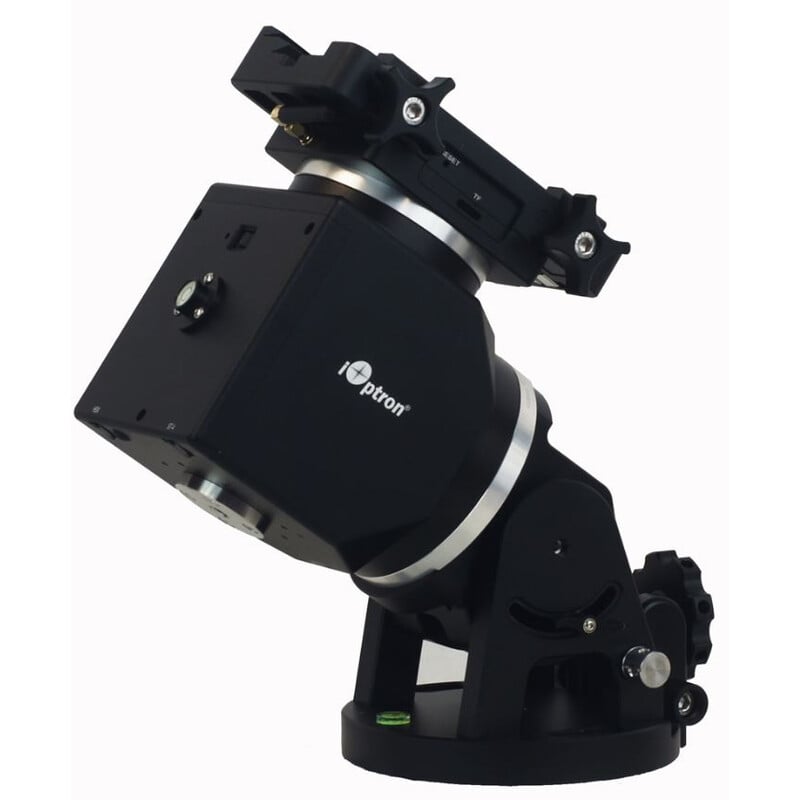

The iOptron HAE69 is an AZ/EQ mount with a strain wave drive (harmonic drive) on both axes. Without a counterweight, it carries 31.3 kg (69 lbs). Use it in alt-azimuth mode for quick visual observing or in equatorial mode for long-exposure astrophotography.
Deze uitvoering combineert de ingebouwde iMate-computer met een Go2Nova handbediening: automatiseer je fotosessies via de iMate, of pak voor visuele avonden gewoon de handset.
The built-in GPS automatically sets the time and position.

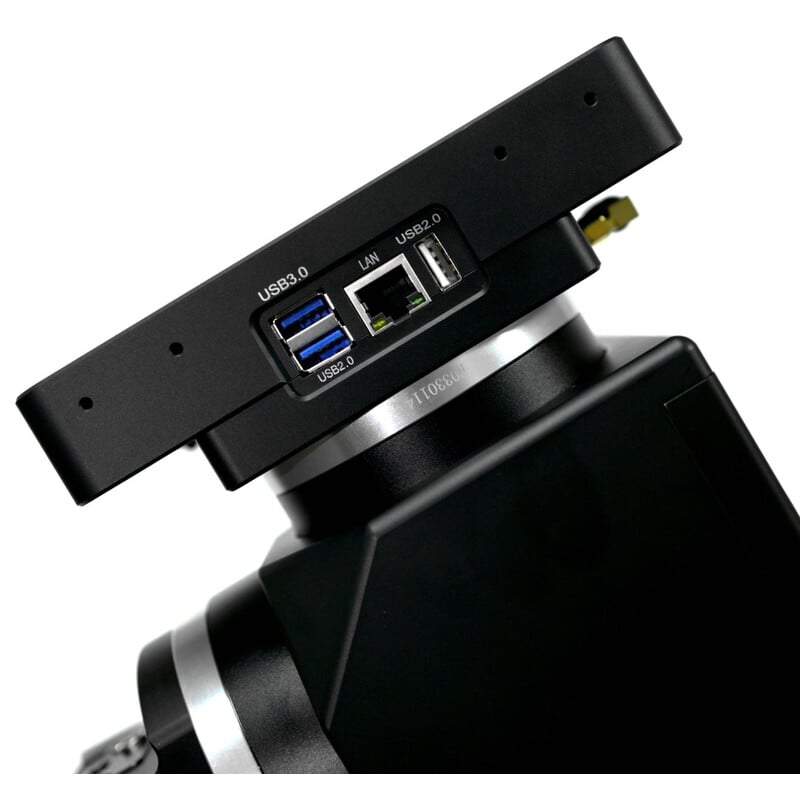

iMate: complete onboard minicomputer
The built-in iMate is a 64-bit ARM computer with 32GB of storage and a micro-SD slot, pre-loaded with KStars, Ekos, and INDI drivers. You connect the camera, focuser, and filter wheel directly to the mount, and the entire photo session runs autonomously on board.

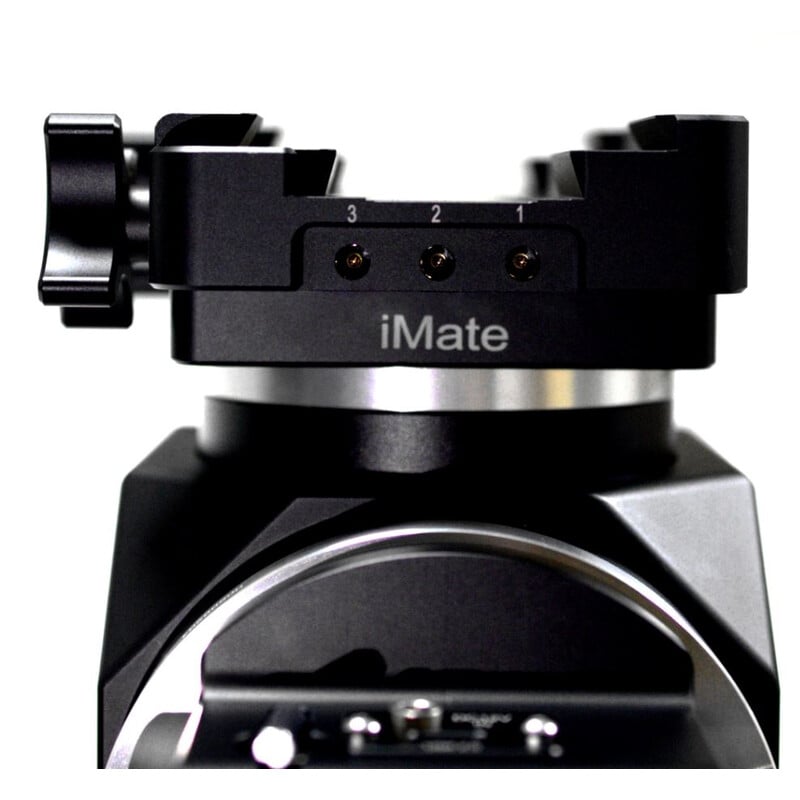

You can monitor and adjust settings via WiFi from Windows, macOS, Linux, iOS, or Android. Switched 12V outputs on the cap power your peripherals without loose cables.
Strain wave: power without counterbalance
The strain wave gears deliver a high torque without backlash, making a counterweight unnecessary in most setups. That saves kilograms of heavy lifting and minutes of setup time.
The electronic friction brake on both axes safely stops the mount in case of a power failure, and the power-down memory saves the alignment, so you can continue without re-aligning.

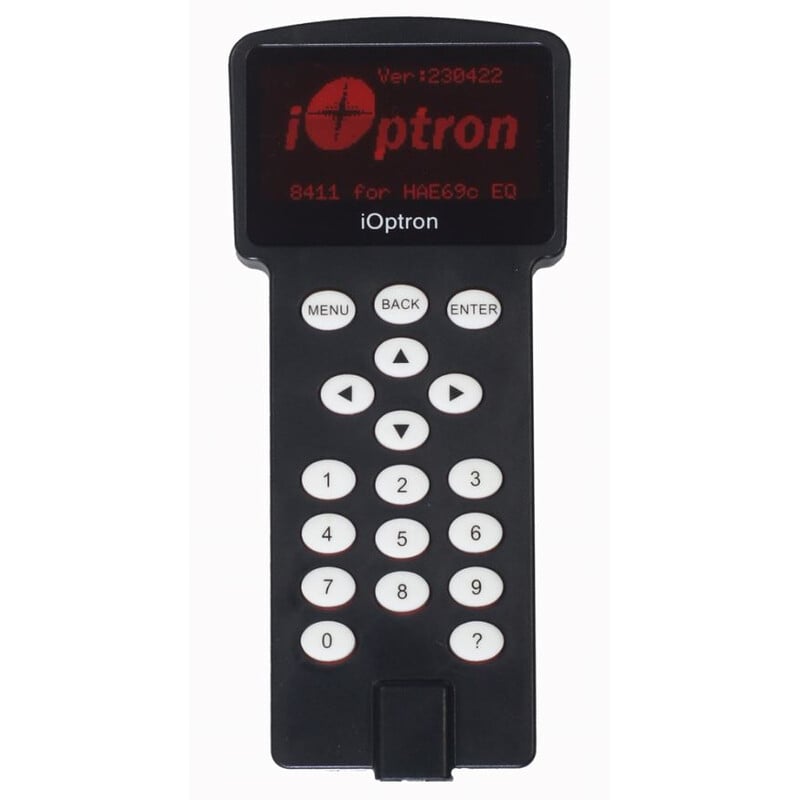

Handset voor de snelle avond
Voor visueel waarnemen is een handbediening vaak sneller dan een app: object kiezen, bevestigen, kijken. Deze uitvoering geeft je beide werelden.
Het omschakelbare breedtegraadbereik loopt van de evenaar tot 90 graden, inclusief zuivere alt-azimut stand.
Included
- HAE69 mounting head with built-in iMate
- Go2Nova hand controller
- Transport case
- Power supply and USB cable
Featured accessories
Add the 20 cm MiniPier for the HAE69 for clearance around the zenith, and the counterweight clamp for unbalanced hanging setups.
For whom yes and for whom no
- ✓ Wie fotografie automatiseert en daarnaast visueel waarneemt met handbediening
- ✗ Wie nooit een handset gebruikt: de uitvoering zonder handset is voordeliger
Specifications
| Type | AZ/EQ GoTo Mount, strain wave on both axes |
| Carrying capacity | 31.3 kg (69 lbs), without counterweight |
| Friction brake | Electronic, on the RA and declination axis |
| Gear period | 360 seconds |
| Saddle | Dovetail, Vixen, and Losmandy-D |
| Connections | WiFi, USB, ST-4 autoguiding |
| Memory | Power-down position and alignment memory |
| Tripod | Not included |

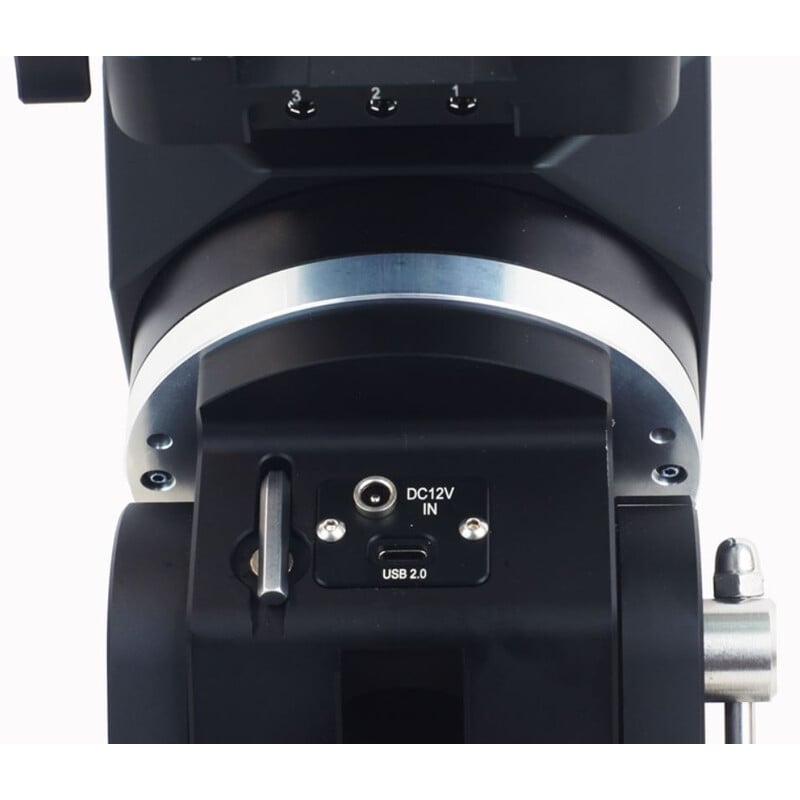

| Nutrition | 12 V DC |
| On-board computer | iMate, 64-bit ARM with KStars, Ekos, and INDI |
| Manual | Go2Nova, included |
| GPS | Built-in |
