iOptron CEM70G Mount GoTo

iOptron CEM70G Mounting GoTo: 70 lbs mounting with built-in auto-guide

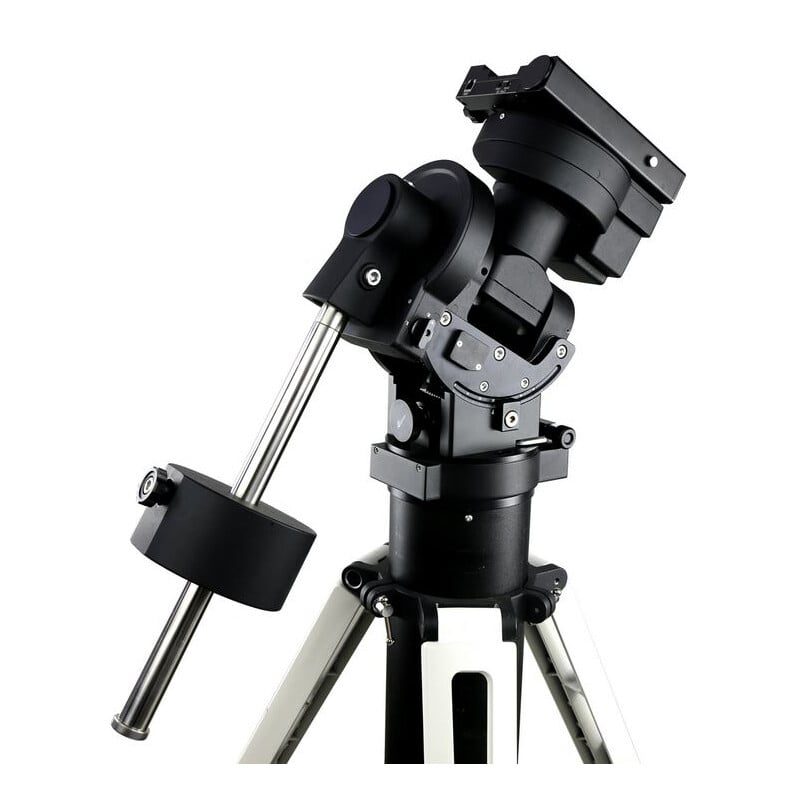

The iOptron CEM70 is a center-balanced equatorial GoTo mount with a load capacity of 31.8 kg (70 lbs), excluding the counterweight, and a head weight of 13.6 kg (30 lbs). The weight is centered directly above the center of the tripod or column, which gives this mid-range mount its characteristic stability and tracking accuracy.

The G version has the iGuider autopilot fully integrated: its own optics, its own camera, no more separate tracking device on the tube. Additionally, WLAN and USB 3.0 ports are onboard for wireless control and fast data transmission.

With this, this is the most integrated CEM70 for those who build a tight, complete photo setup.

Guiding without off-axis guider

The iGuider continuously guides you via guiding software like PHD2, without adding any extra weight or shifting the balance on the tube. Fewer parts, fewer cables, less that can go wrong in the field.

The ST-4 port remains available for those who still want to use external guiding.

GoTo with GPS and heated hand controls

The Go2Nova 8407+ hand controller contains over 200,000 objects and has a display heater for cold nights. The built-in 32-channel GPS automatically sets the time and position.

The adjustable counterweight shaft works down to the equator and the magnetically loaded gear system engages with large levers, even with gloves on. Autoguiding is possible via the ST-4 port.

Cable management for complete photo setups

The internal cable management offers, among other things, two 12V outputs and three USB 2.0 ports on the head. You can connect your camera, filter wheel, and focuser on top, without dangling cables that can snag during rotation.

The wide dual saddle accommodates both Vixen and Losmandy rails. The mount is supplied without a tripod; the LiteRoc tripod for the CEM60/70 or a Tri-Pier is the appropriate base.

Included

• CEM70G mounting head with integrated iGuider and built-in iPolar
• Go2Nova 8407+ Handheld Controller with Display Heating
• 9.5 kg counterweight with adjustable counterweight bar
• Transport case, power adapter, and cables

Featured accessories

Combine the head with the LiteRoc tripod for the CEM60/70 and an extra 2.5 kg counterweight for heavier tubes.

For whom yes and for whom no

• ✓ Astrophotographers with tubes up to approximately 20 kg for photographic use
• ✓ Anyone building a fixed or semi-fixed setup with a lot of peripherals
• ✓ Who wants to take photos guided by a viewfinder without a separate viewfinder
• Light travel setups: a CEM40 or GEM45 would be more practical

Specifications

You can find more mounts and accessories for this brand at the iOptron brand page.
