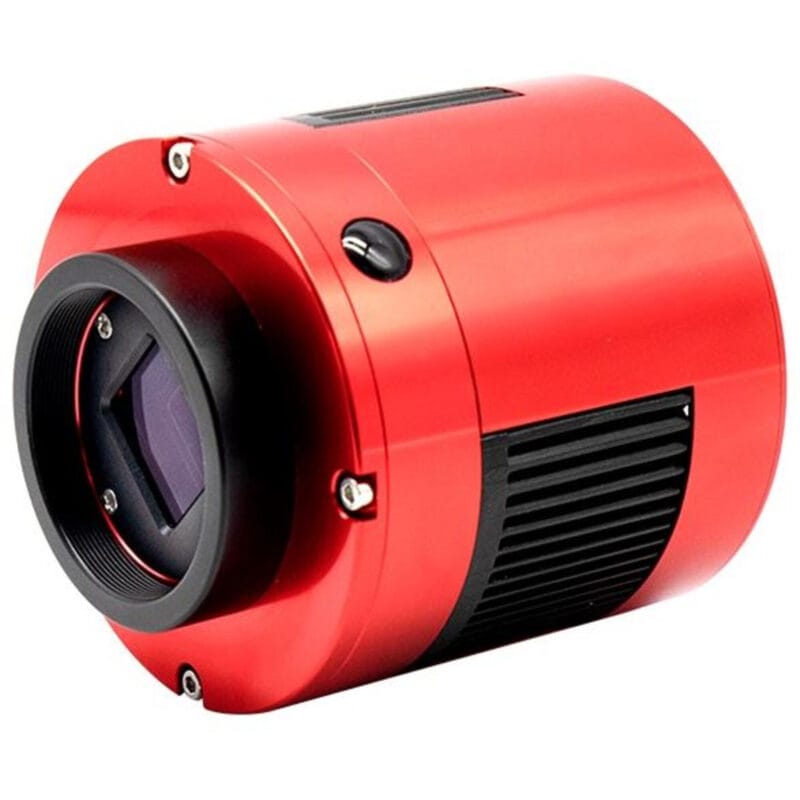

ZWO ASI533MC Pro Color

The ZWO ASI533MC Pro Color is a compact, cooled color camera with square sensor for deep-sky and planetary photography. The Sony IMX533 CMOS sensor with back-illuminated technology provides high sensitivity, low noise and sharp images of galaxies, nebulae and the moon.

With a square sensor (3008 × 3008 pixels) of 9 MP and a pixel size of 3.76 µm, this camera is ideal for use with fast telescopes such as apochromats, Newtons or HyperStar systems. With a QE up to 80%, active Peltier cooling and 14-bit ADC, this camera offers performance previously known only from CCD cameras - but with much higher sensitivity.

Key features

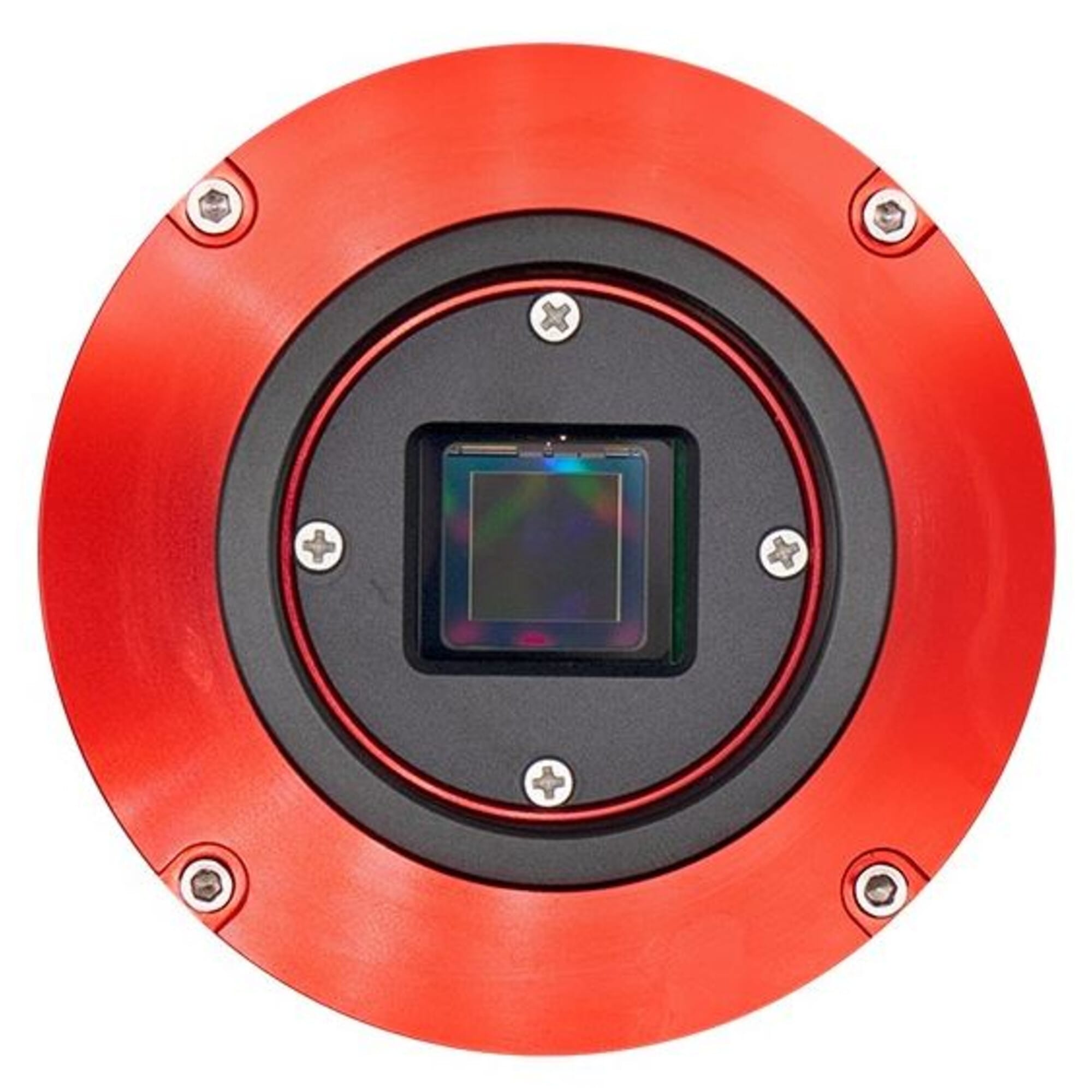

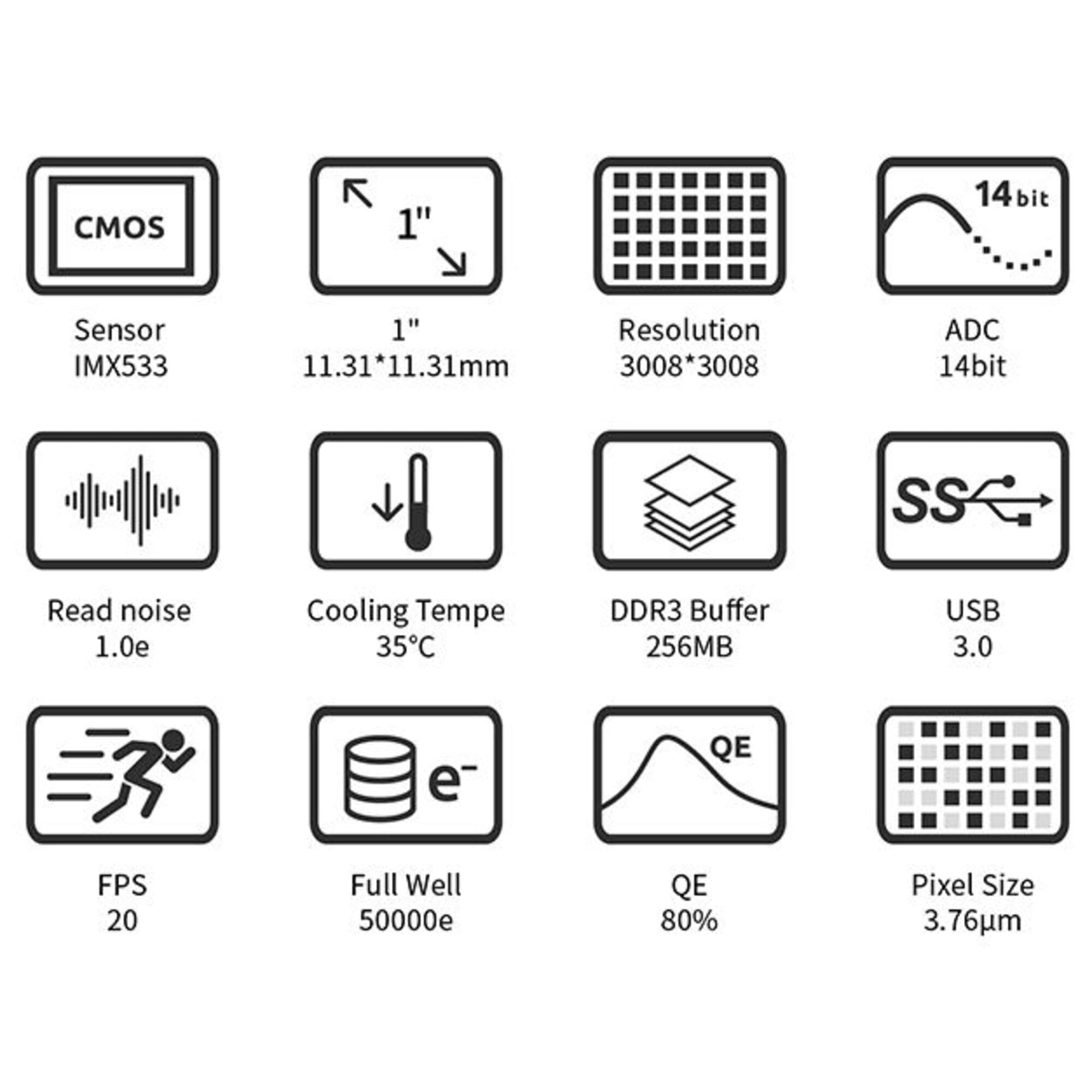

• Sony IMX533 CMOS sensor (9 MP) - square format, 3008 × 3008 pixels
• Pixel size 3.76 µm - suitable for f/4 to f/8 telescopes
• Active Peltier cooling - up to 35 °C below ambient temperature
• QE to 80% - thanks to back-illuminated technology
• 14-bit ADC and low noise - For deep and detailed shots
• USB 3.0 & DDR3 buffer - fast and stable data transfer

Applications

✓ Deep-sky photography: nebulae, galaxies, clusters ✓ Planets and Moon: sharp details thanks to high resolution and low noise ✓ Video astronomy (EAA) and short-exposure shots ✓ Color images without LRGB filter wheels

Specifications

Additional info

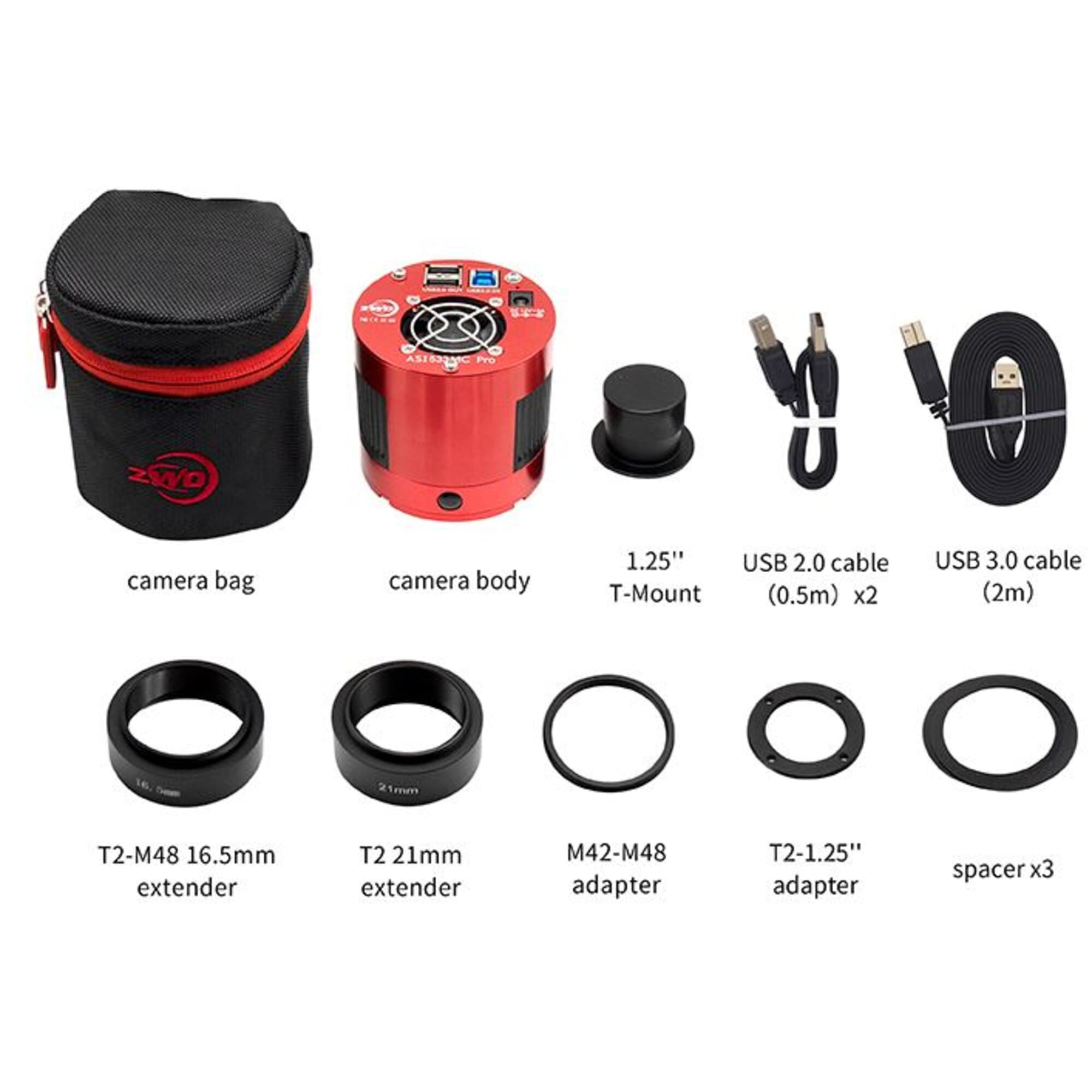

✓ Includes clear AR glass filter (IR transmissive) ✓ Comes with cables, adapters and transport case ✓ Works on Windows, Mac and Linux

Note

Always use a suitable power supply (12V DC) for cooling, even when not actively cooling. For visual color reproduction, an IR-cut filter is recommended.
