Omegon W&W 4-Channel Controller for Dew Heaters

Omegon W&W 4 Kanaals Controller voor Dew Heaters: vier linten onafhankelijk geregeld

A complete photographic setup quickly encompasses four surfaces: the main optics, the guidescope, the finder, and the eyepiece or the lens of an all-sky camera. Each requires its own power; controlling a thick strap around a 10-inch tube and a thin strap around a guidescope on the same channel means one of the two will be too warm or too cold.

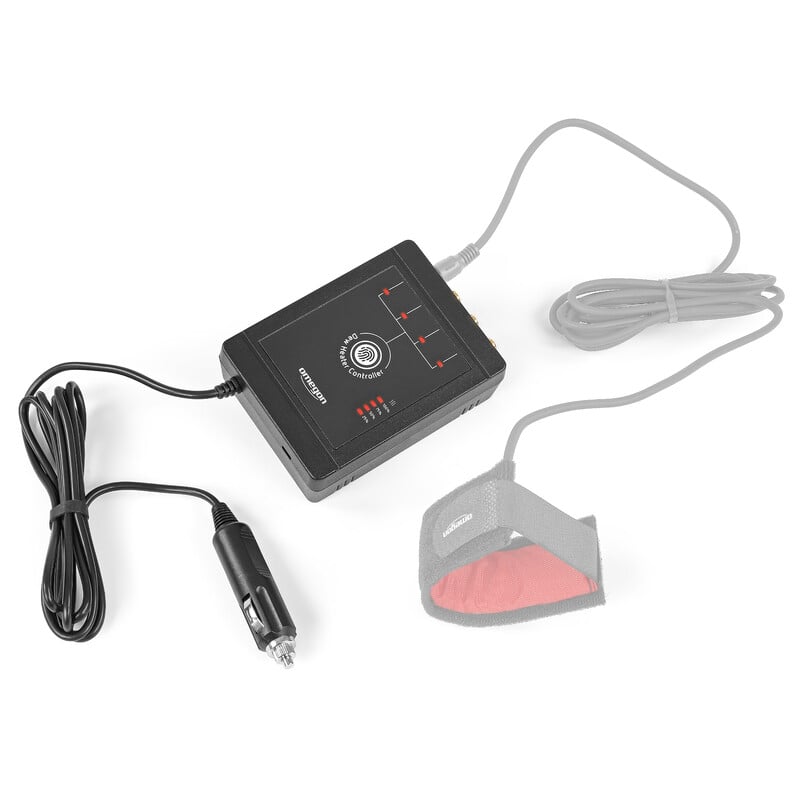

This controller gives each strip its own channel with its own control knob. This way you heat each surface just enough and not a single watt more, which is directly reflected in the battery life.

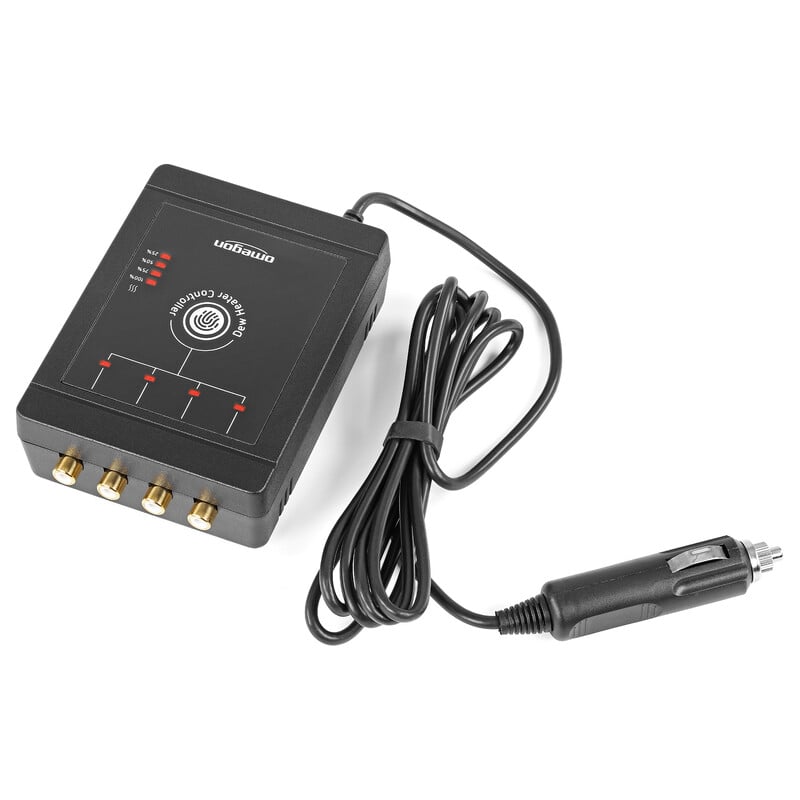

Four channels, up to 48 W per channel

Each channel is infinitely adjustable from 0 to 12 V and delivers up to 48 W. That is more than enough for the heaviest tapes around large pipes.

The control works independently per channel, so a change to one strip does not affect the other.

Secured on 4 A

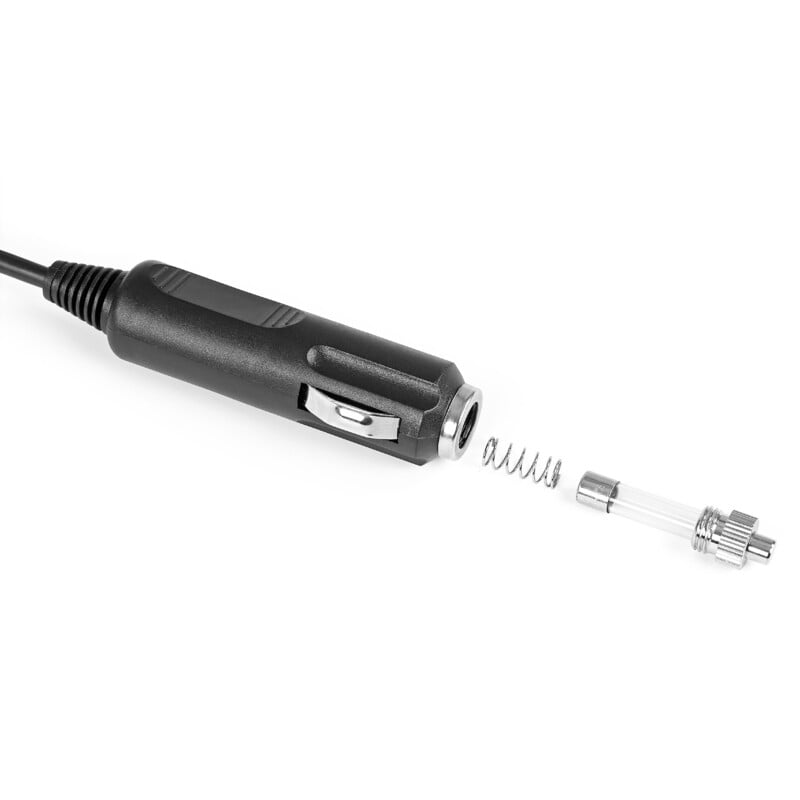

The 2-meter power cable ends in a cigarette lighter plug with a built-in 4 A fuse. In the event of a short circuit in a strip or cable, the fuse sacrifices itself, not the controller or your battery.

Fixed in the lineup

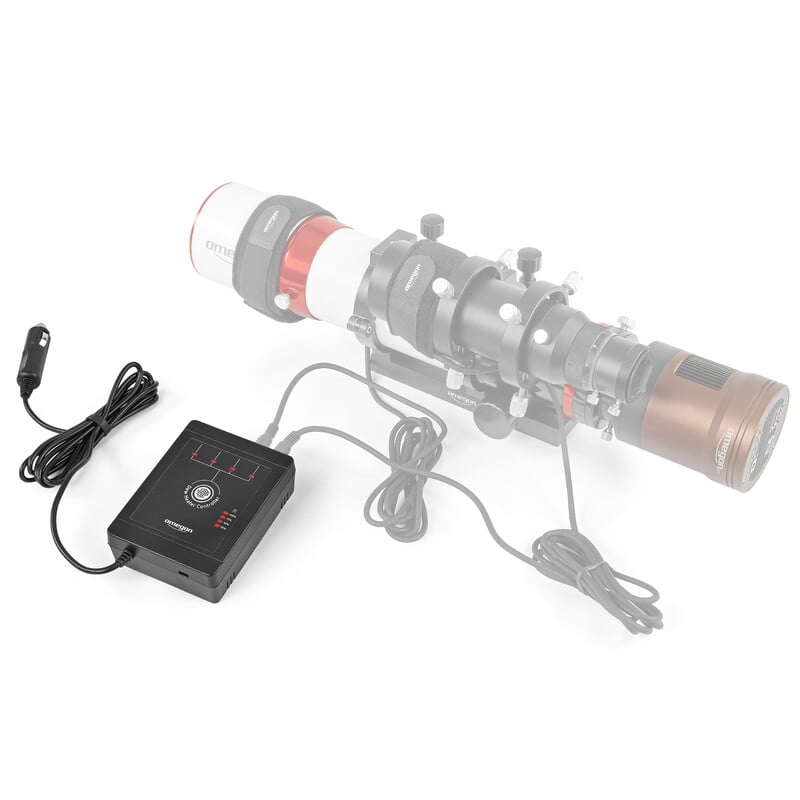

With the included mounting clip, you can attach the controller to the tripod or mount. This prevents it from dangling by its cables and keeps the control knobs in a fixed, easy-to-find location in the dark.

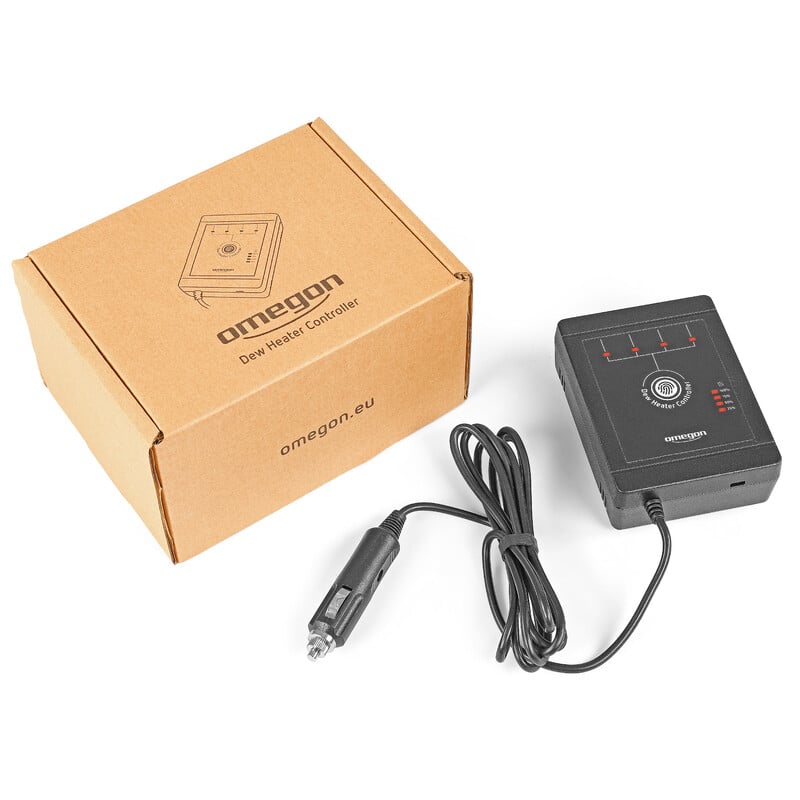

Included

• Four-channel controller
• Power cable 2 m with cigarette lighter plug
• 4 A fuse
• Retaining clip

Featured accessories

Suitable for dew ribbons of any merk model with a compatible plug. Power the controller using a Power Tank or Pro Powerbank; verify that the total ribbon power does not exceed your battery’s capacity.

For whom yes and for whom no

• ✓ Astrophotographers with multiple surfaces to heat
• ✓ Setups with a primary mirror and a guide scope
• ✓ For those who want to be able to adjust battery usage per ribbon
• ✗ If you're using one or two ribbons: the two-channel controller is sufficient
• ✗ Setups without dew problems, such as enclosed observatories

Specifications

You can find more power solutions from this merk on the Omegon merk Page.
