Omegon Power Hub C28 with 3x 12V and 4x USB

Omegon Power Hub C28 with 3x 12V and 4x USB: one power source, seven connections

A photographic setup in the field quickly has four or five power consumers: mount, camera, dew heater, mini-PC, and a phone that needs to last the night. With a single powertank output, you won't manage that without fiddling with splitters.

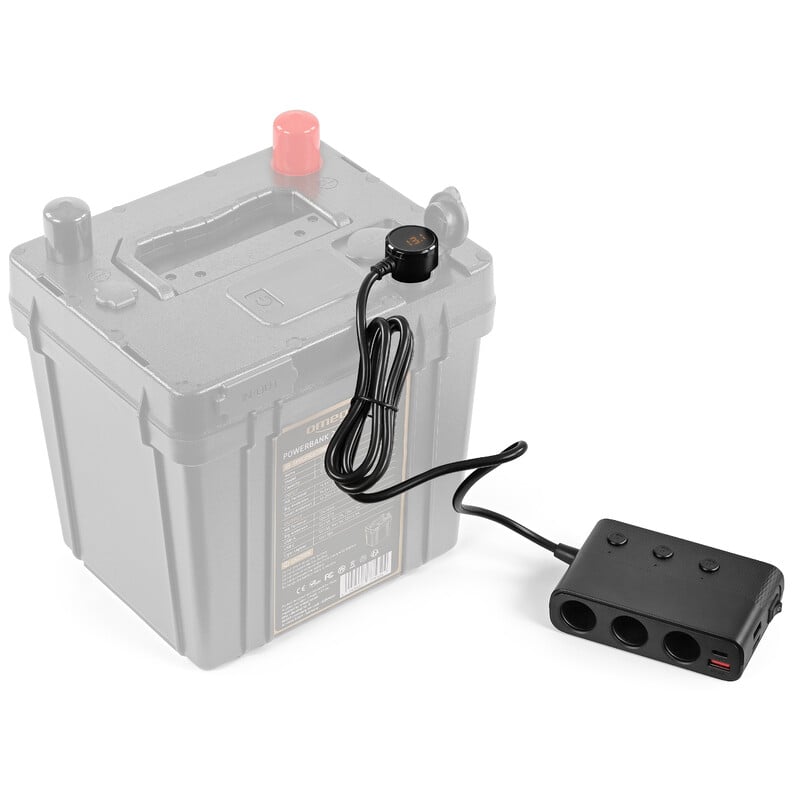

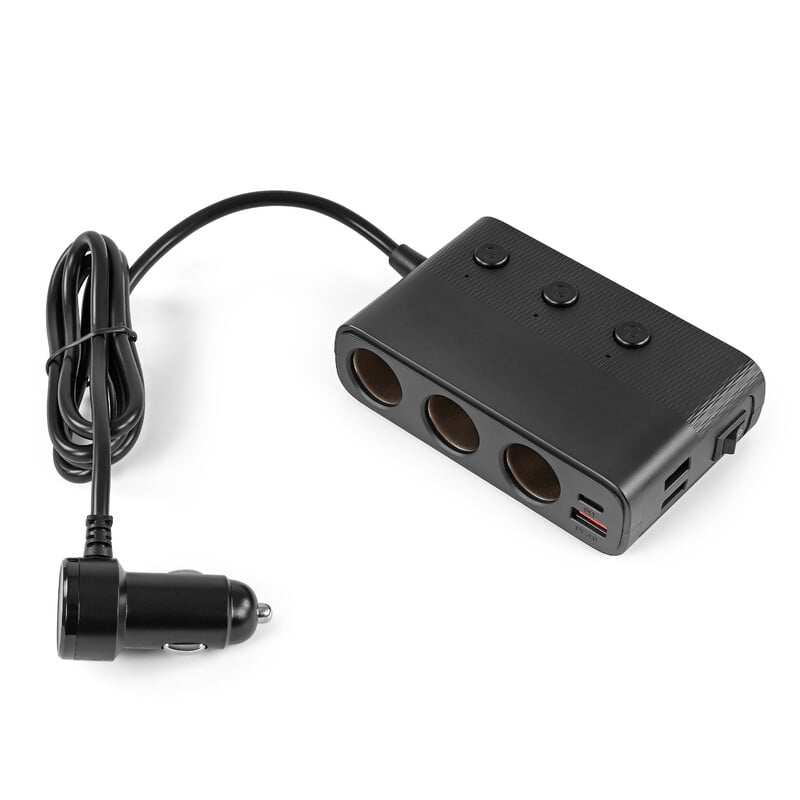

This hub splits a 12V source across three car sockets and four USB ports. You plug it into the power tank or the car, and the whole setup hangs on a cable.

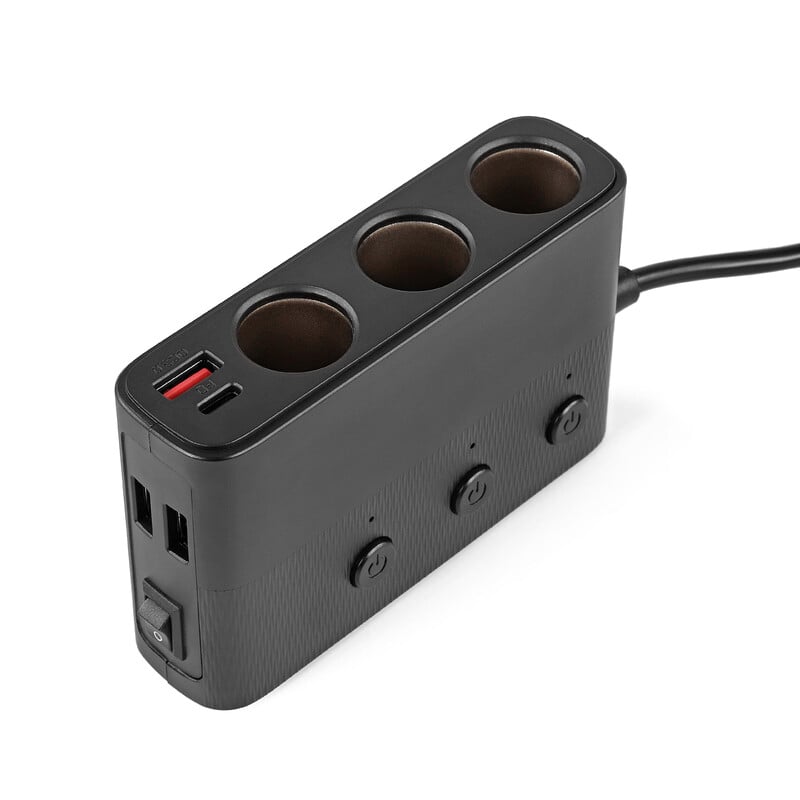

Seven outputs, one display

The three 12 V outputs together supply up to 10 A. On the USB side, there are two Quick Charge 3.0 ports, a third USB-A with QC, and a USB-C with Power Delivery up to 30 W, enough to power a tablet or mini-PC as well.

The built-in voltage display shows the output of the power source. If your battery's voltage drops, you'll see it here first, before your system detects it.

Protected against field accidents

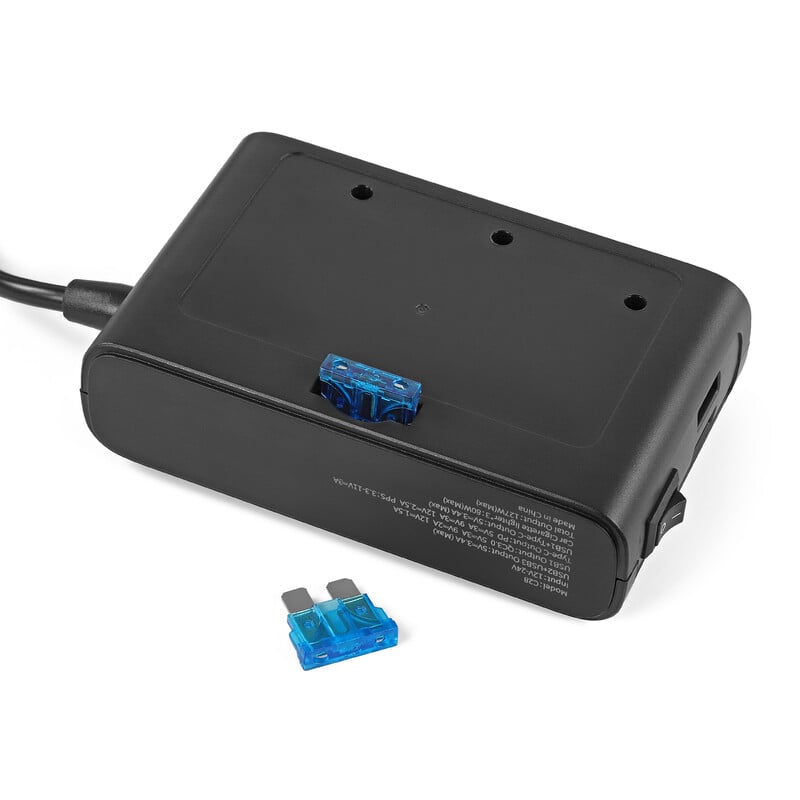

Short-circuit and overload protection are built-in, plus a replaceable fuse. In the dark with cold hands, pulling plugs can sometimes go wrong; then the fuse blows instead of your equipment.

Metal housing

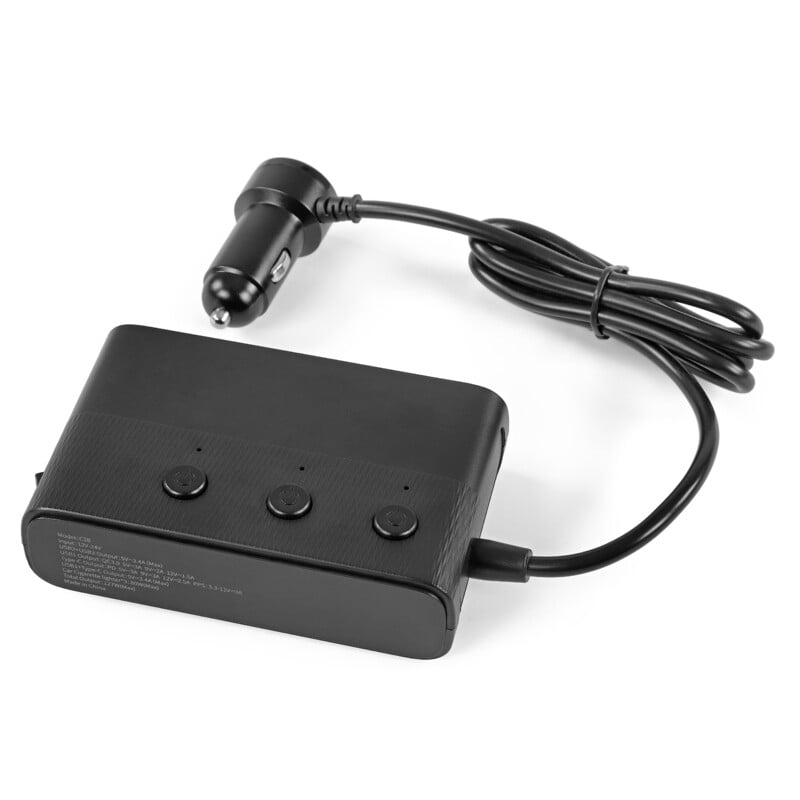

The casing is made of metal and plastic and weighs 88 grams. The main switch turns everything off at once, so you don't have to pull seven plugs when you unplug it.

Featured accessories

Combine the hub with a Power Tank or Pro Powerbank as the source. The total consumption of your equipment must remain within the hub's 10 A and within your source's power capacity.

For whom yes and for whom no

• ✓ Astrophotographers with multiple 12V consumers
• ✓ How to power the phone or mini-pc next to the telescope
• ✓ Setups that run from a power tank or car
• If you only power one device, then the hub is superfluous.
• Consumers above 10 A total

Specifications

You can find more power solutions from this merk on the Omegon merk Page.
