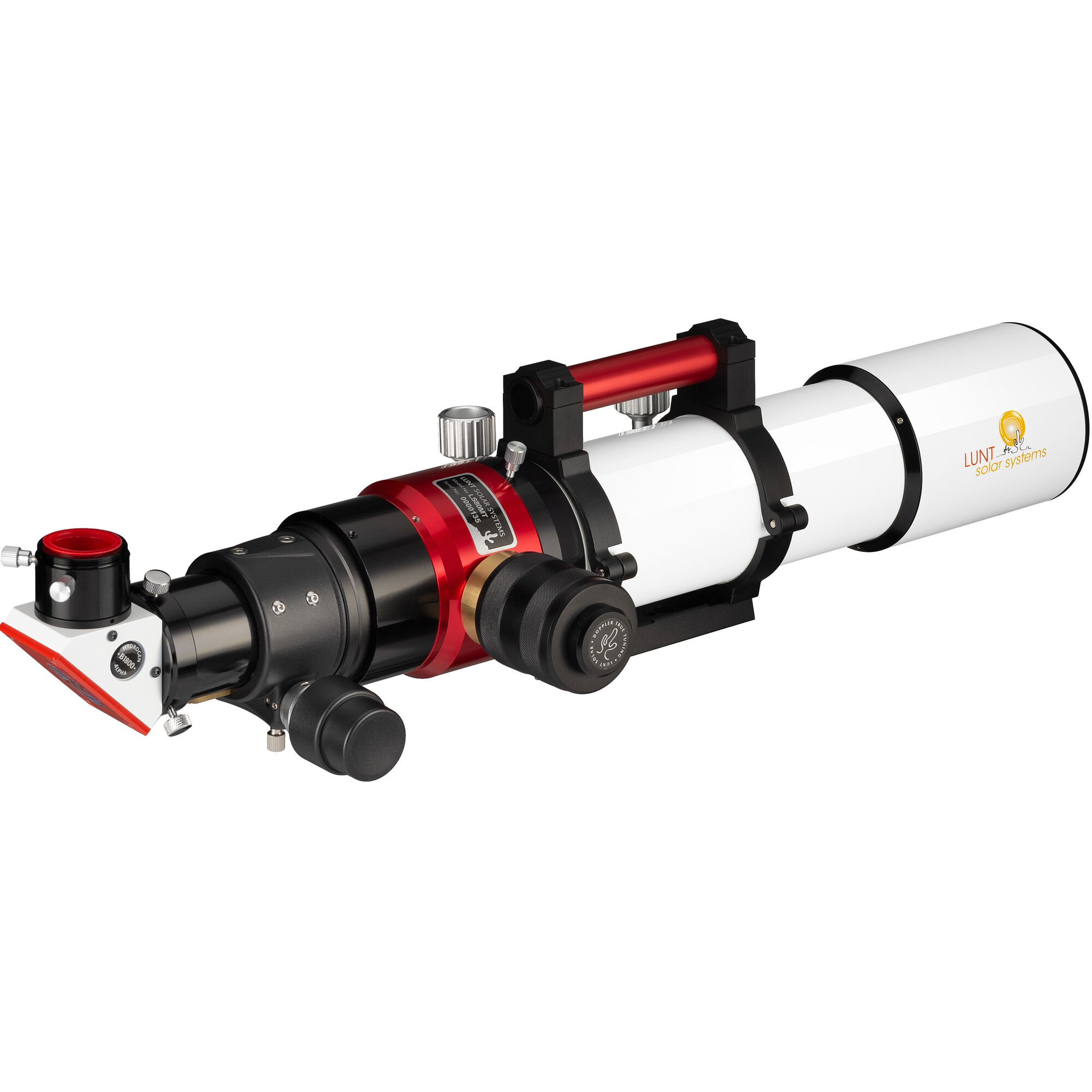

Lunt LS80MT ST 80/560 Ha B1200

Large H-alpha field of view for photography with maximum detail reproduction

The Lunt LS80MT ST 80/560 Ha B1200 is designed for serious solar photographers and advanced observers who need both high resolution and a wider field of view. The B1800 block filter gives you significantly more margin at large camera sensors, binoviewers and higher magnifications, without vignetting or image compression. The result: more stable, wider and sharply delineated H-alpha structures.

The combination of an 80 mm aperture and the obstruction-free design yields visibly more fine structure than smaller H-alpha telescopes. Filaments, prominences and spicule fields show nuances that are more subtle or less defined in 60 mm models.

Modular system: H-alpha by day, ED-apo by night

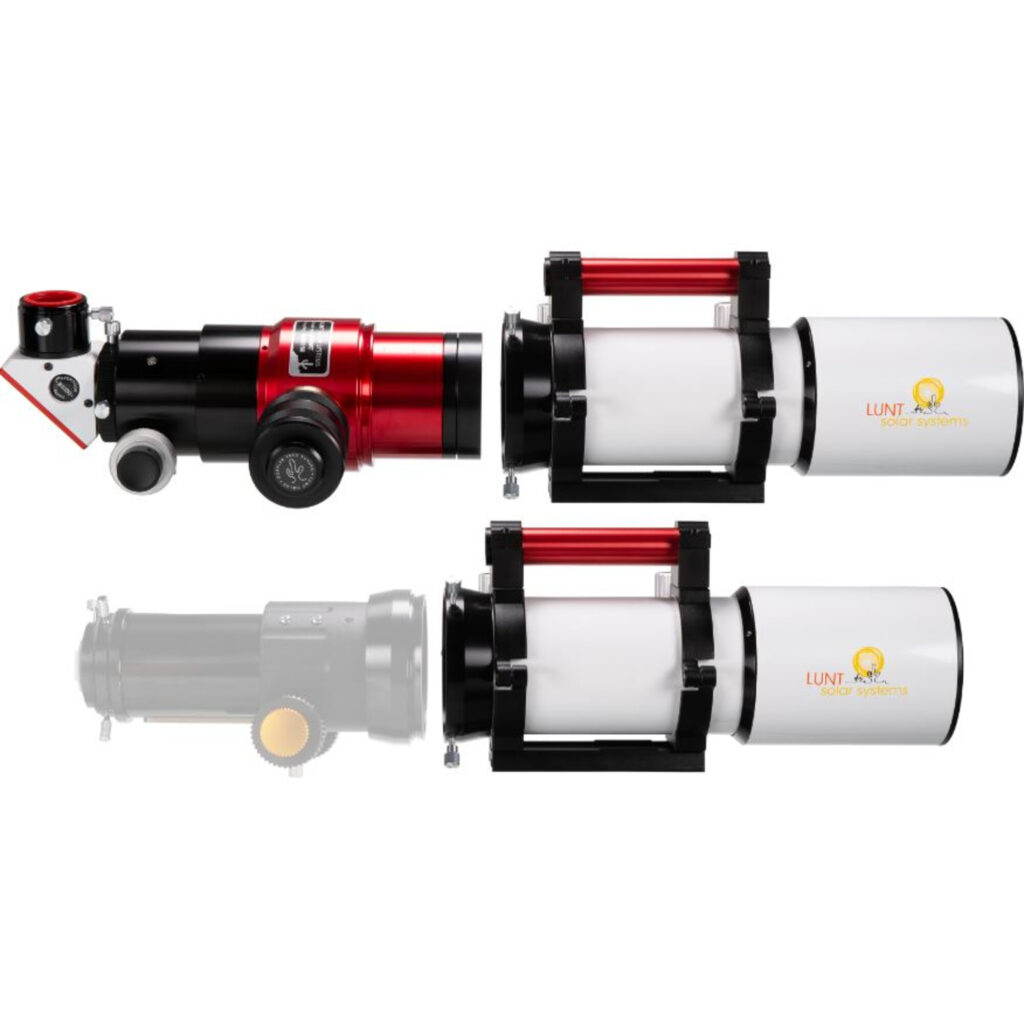

Lunt's MT platform is known for its flexibility. Removing the H-alpha etalon module transforms the telescope into a high-performance 80 mm ED doublet (FPL-51) with FMC coating. That gives you a fully functioning night refractor for moon, planets and bright deep-sky objects - without having to own two telescopes.

In H-alpha mode, the telescope remains very compact (500 mm transport length), but with a robust build quality perfectly suited to serious photography setups.

GB1800 block filter: ideal for large sensors and professional setups

The difference between the B1200 and B1800 is huge for photographers. The B1800 gives:

• more field of view
• less risk of vignetting
• Better performance with APS-C and larger sensors
• more comfort when using bino viewers
• broader fine-tuning in prominence photography

This makes the LS80MT B1800 version the preferred choice for astrophotographers who want maximum flexibility.

Accurate Rack & Pinion focuser with 1:10 fine adjustment

The 2-inch Rack & Pinion focuser with 1:10 reduction offers mechanical stability and precision - crucial when working with heavy cameras, barlows or binoviewers. Even at high magnification, focusing remains controlled and shock-free.

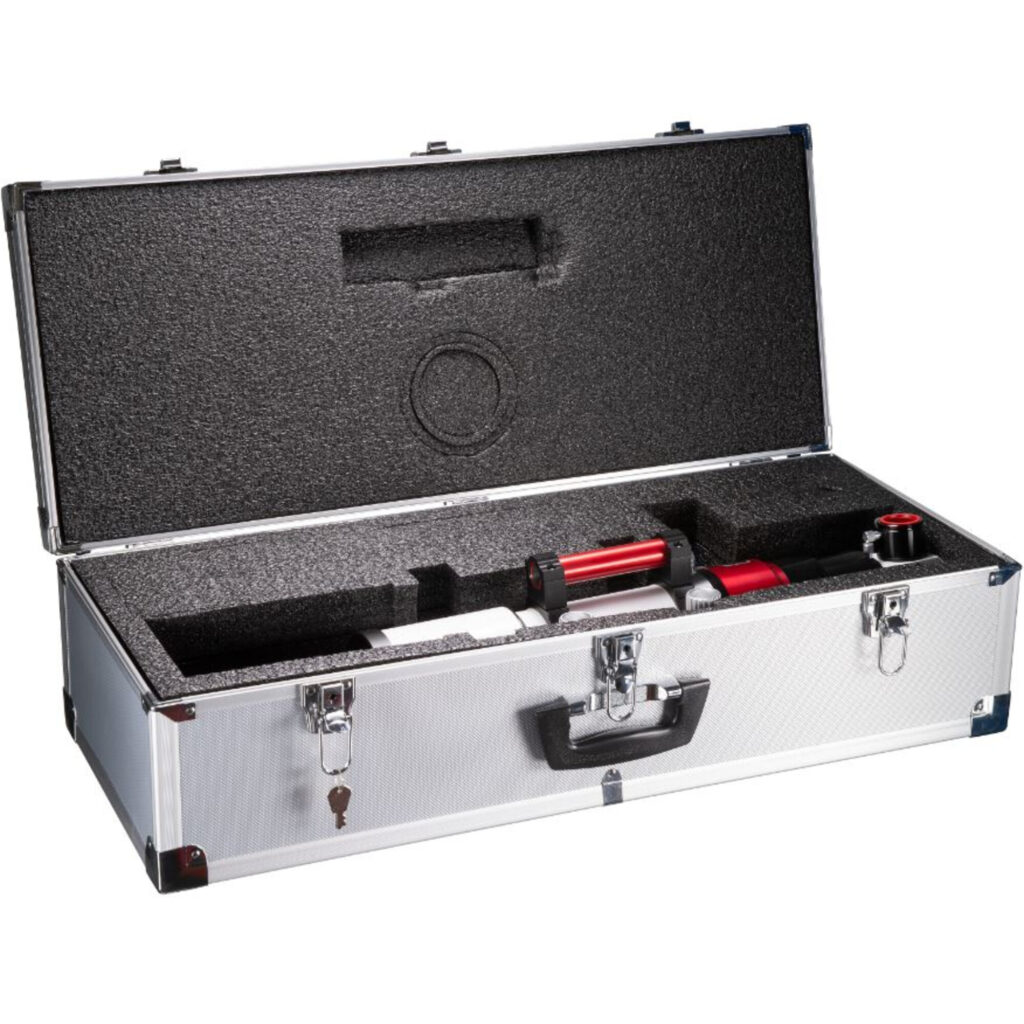

The telescope comes complete with handle, tube rings and a sturdy transport case, suitable for safe transportation and mounting on any Vixen-style dovetail.

What we recommend (including what you can see with it)

With the Lunt LS80MT B1800 you can count on:

• ✓ wide and stable H-alpha image without vignetting
• ✓ prominences with layered structure and fine edge details
• ✓ filaments, plages, spicolevels and active regions in high resolution
• ✓ optimal use with larger cameras (APS-C, IMX183, IMX571 etc.)
• ✓ deployment as ED-apo for moon, planets and bright nebulae (with night module)
• ✓ suitable for advanced sun photographers and users who want maximum freedom in field of view

For beginners, the LS80MT is too advanced; for advanced users, this is one of the most versatile H-alpha systems in its class.

Specifications

Optics

• Type: Refractor
• Design: Solar H-Alpha
• Opening: 80 mm
• Focal length: 560 mm
• Aperture ratio: f/7
• Resolution: 1.73″
• Boundary magnitude: 11.3
• Light output: 130×
• Max. useful magnification: 160×

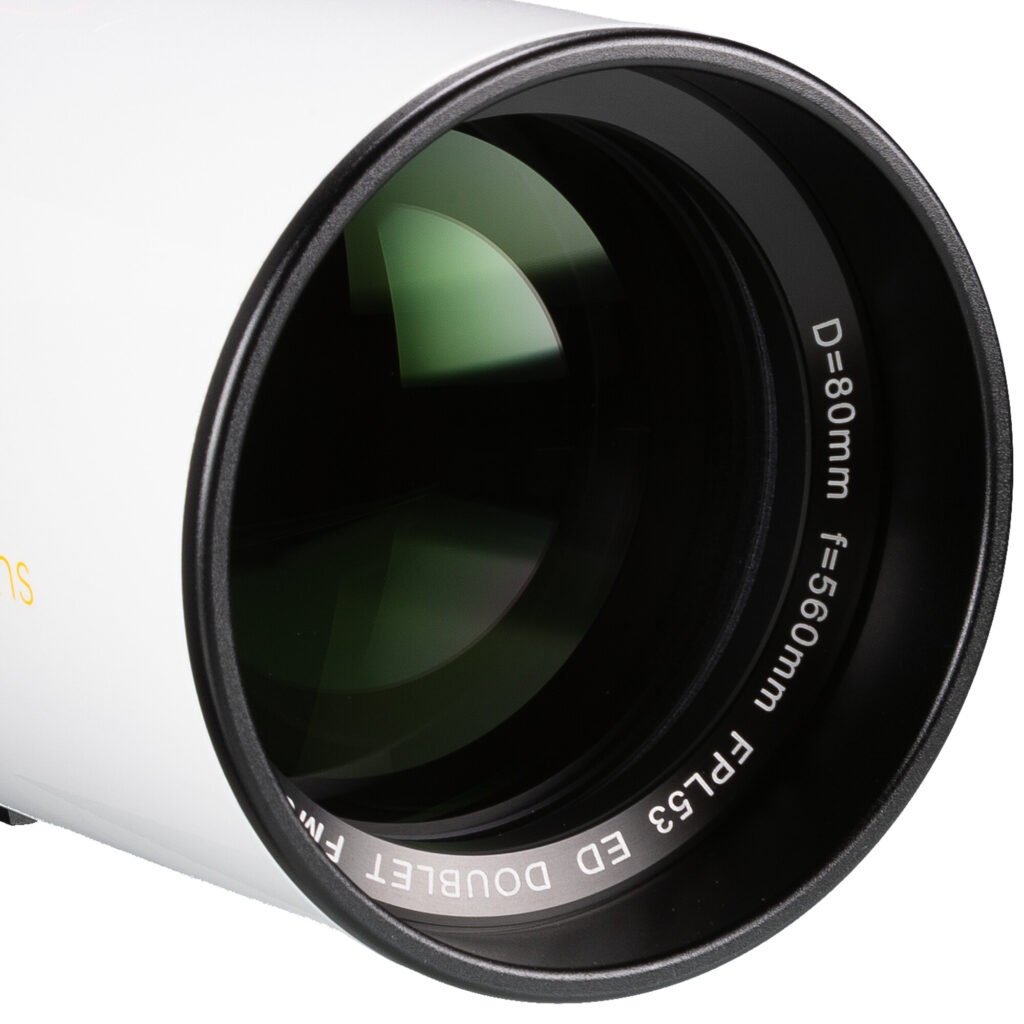

• Lens design: ED doublet (FPL-51)
• Coating: FMC
• Double Stack: no
• Blocking filter: B1800 (18 mm)
• Filter system: H-alpha

Mechanical

• Tube weight: 4.95 kg
• Tube length: 620 mm
• Transport length: 500 mm
• Dovetail: Vixen-Style
• Handle: yes
• Extension pieces: yes
• Tube rings: yes

Focuser

• Design: Rack & Pinion
• Ocular connection: 2″
• Camera connector: T2
• Reduction: 1:10 fine adjustment

Mount

• Design: OTA
• Type of mount: without mount
• GoTo control: manual control for filter tuning

Included accessories

• Sun Finder
• Dew cap
• B1800 block filter
• Vixen-style dovetail
• Handle
• Extensions
• Transport case
• Tube Rings

Application

• Astrophotography: yes
• Moon & Planets: yes (with night module)
• Nature observation: no
• Nebulae & galaxies: yes
• Sun: yes
• Beginners: no
• Advanced: yes
• Observatories: no
