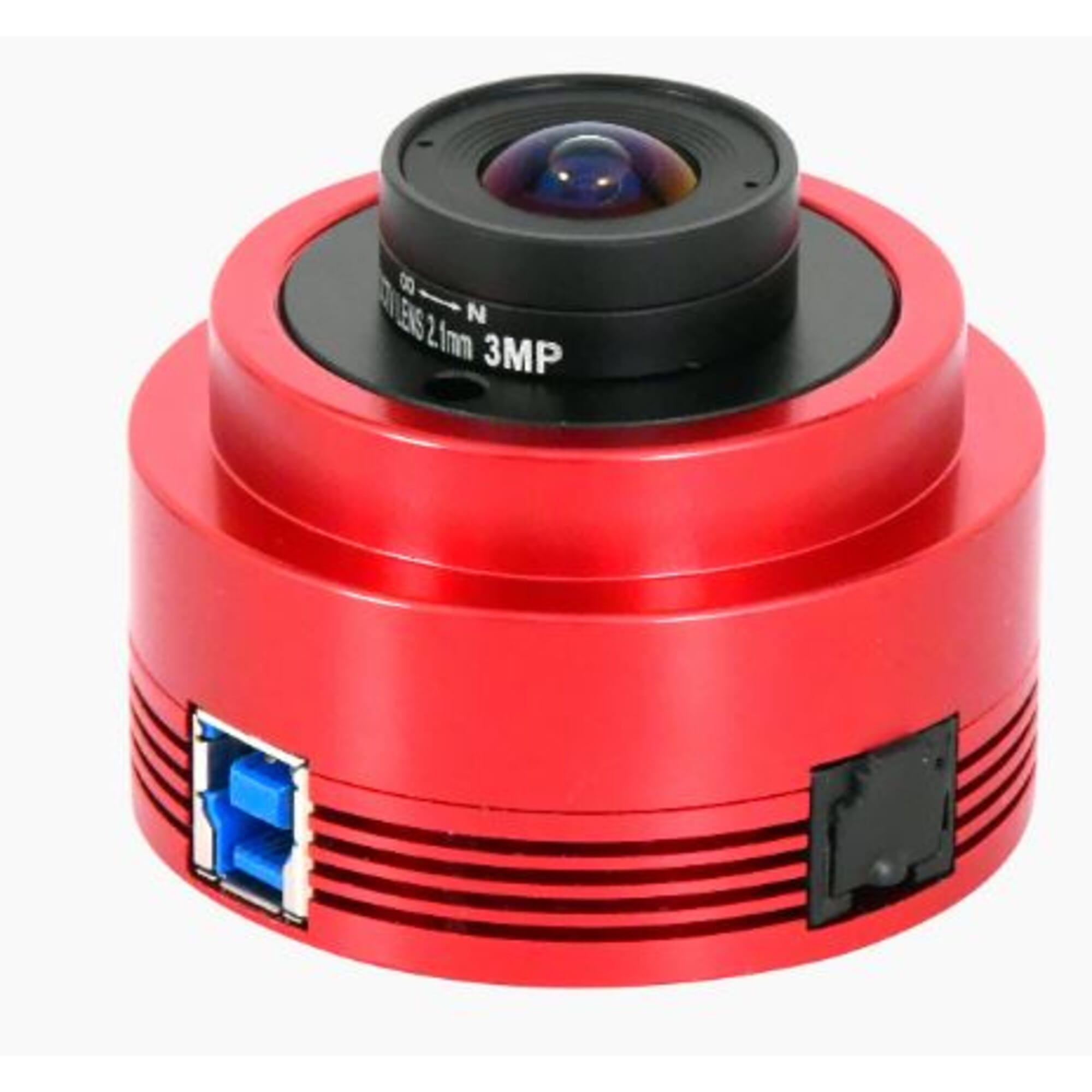

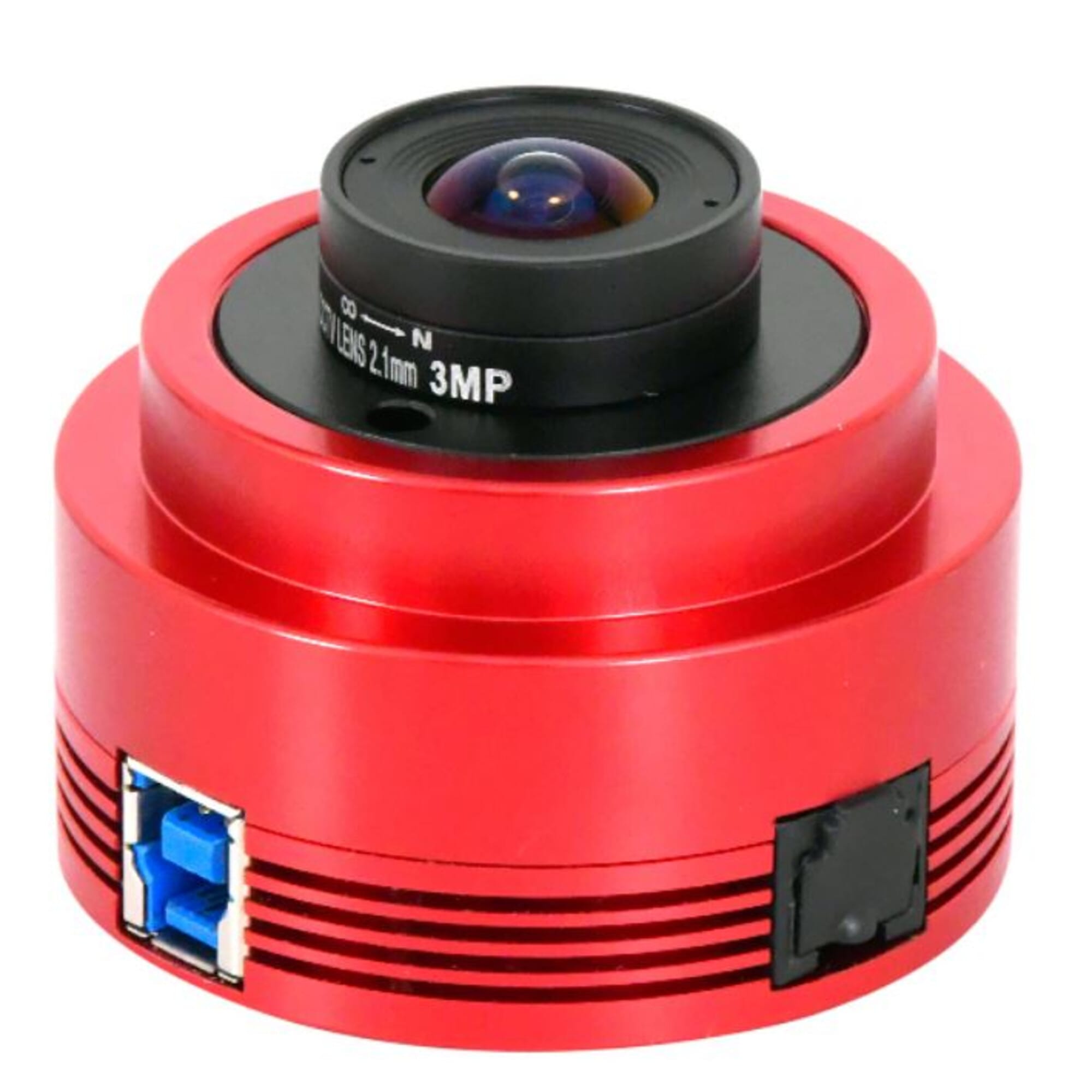

ZWO Camera ASI 715 MC Color

The ZWO ASI 715 MC Color is a high-quality planetary camera that delivers maximum sharpness, minimum noise and true-to-life colors. Thanks to the modern Sony IMX715 CMOS sensor with Starvis 2 technology, you have a resolution of 3864 × 2192 pixels, extremely low readout noise (down to 0.8 e-) and a completely amplifier-free image. This makes this model ideal for planetary photography, as well as suitable for IR applications and small deep-sky objects.

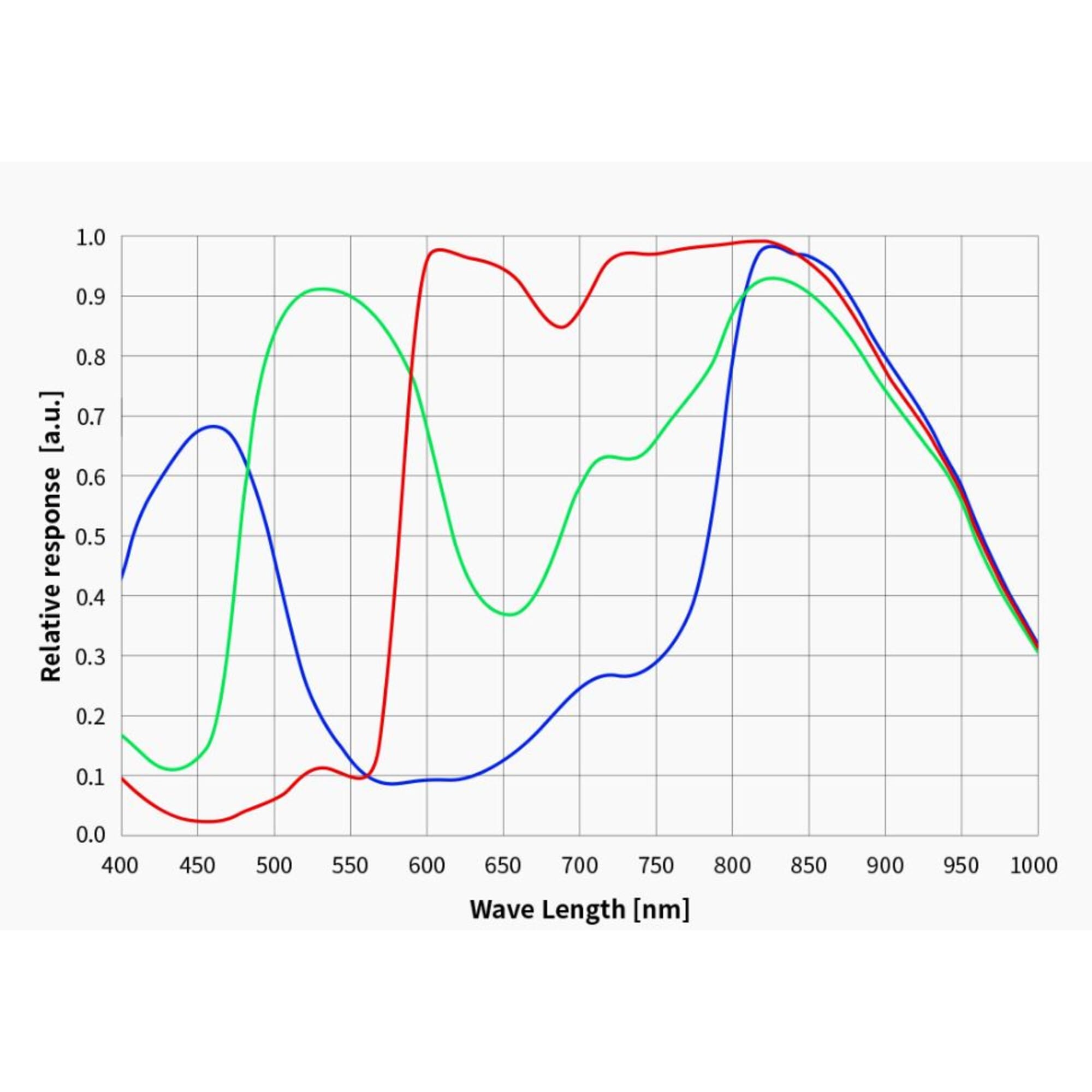

With its small pixels of 1.45 µm, the camera captures fine details without always needing an additional Barlow lens. The high sensitivity in the near infrared allows observations under poorer seeing conditions and offers additional flexibility in infrared photography. Thanks to passive cooling (PCS system), the sensor remains up to 15 °C cooler than comparable uncooled cameras, significantly reducing thermal noise.

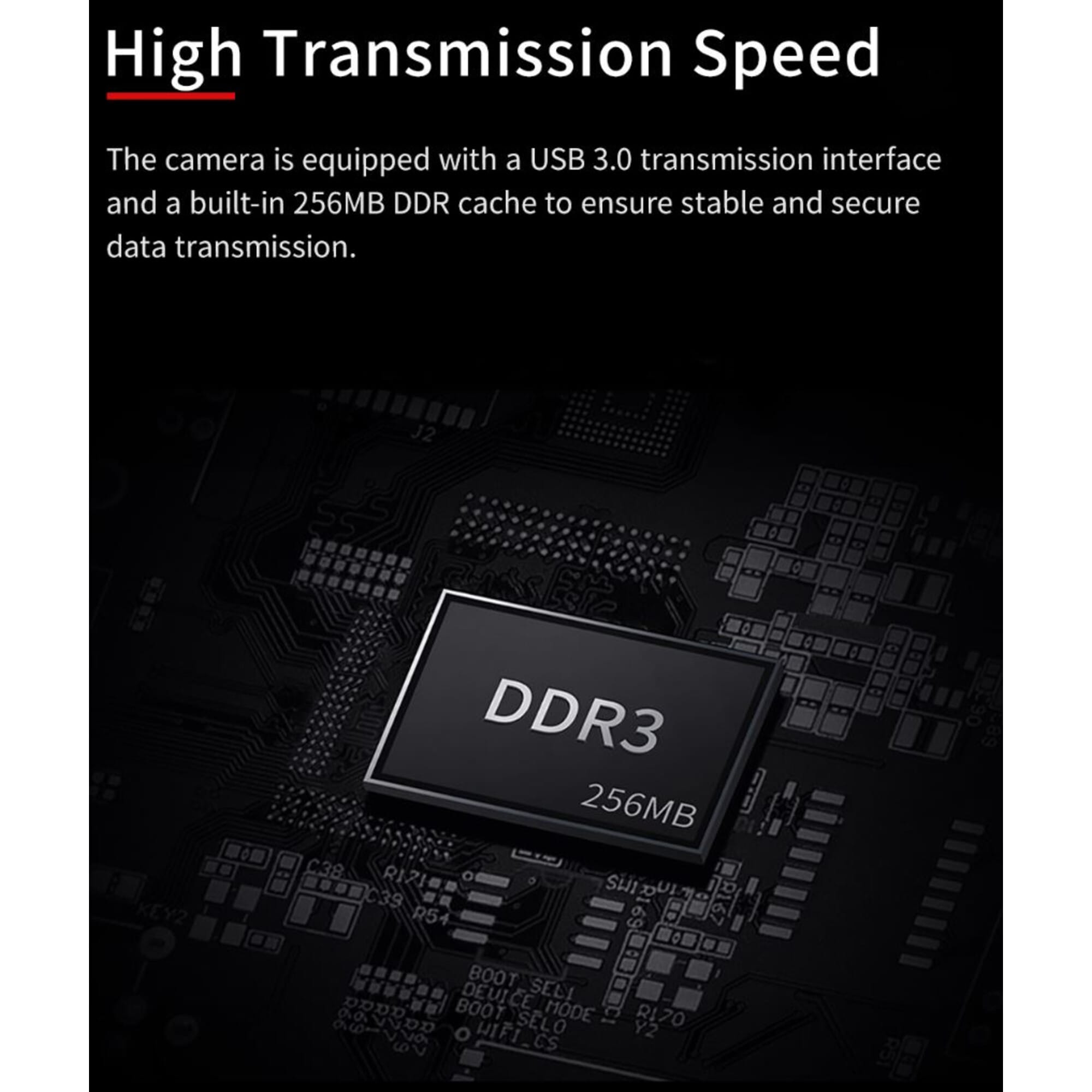

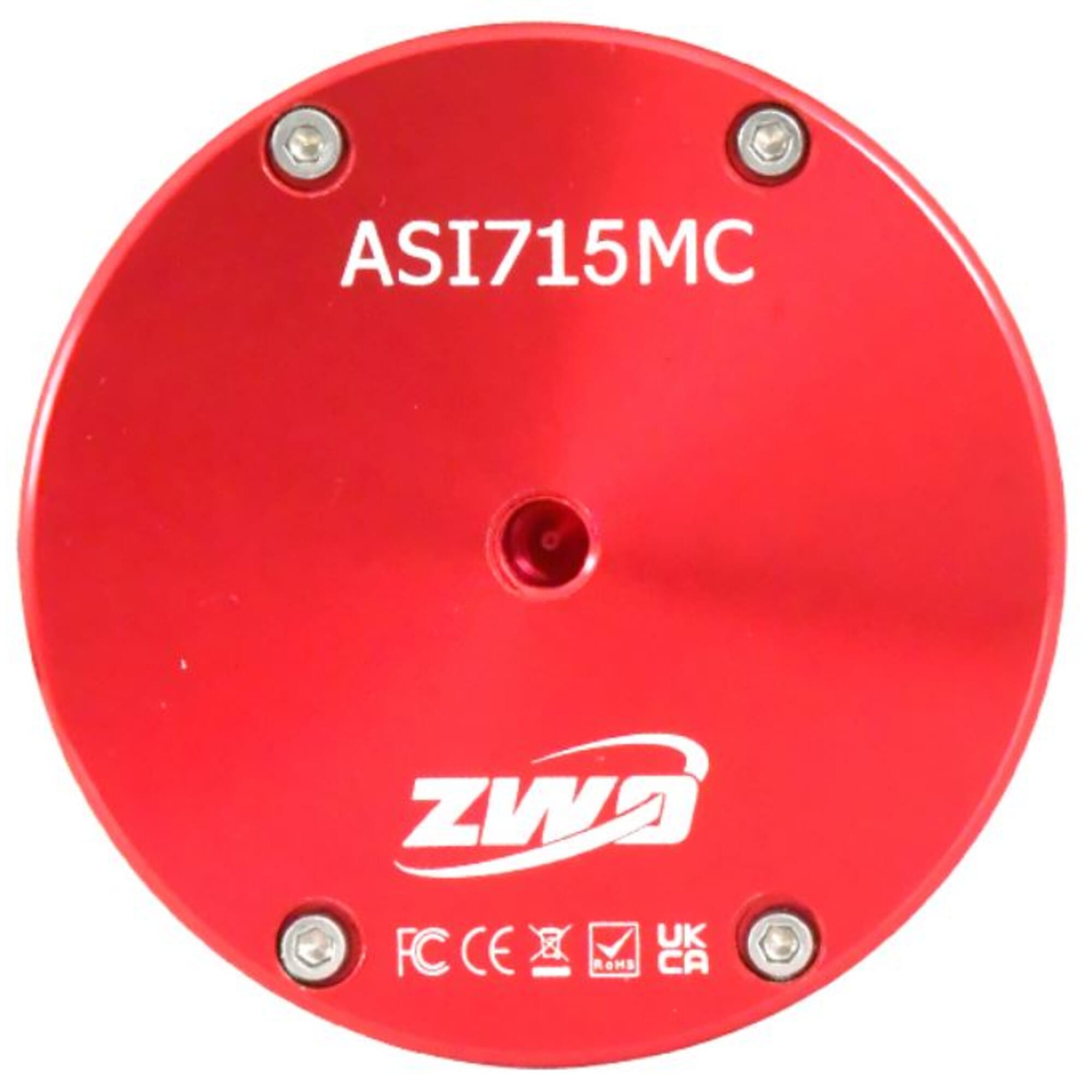

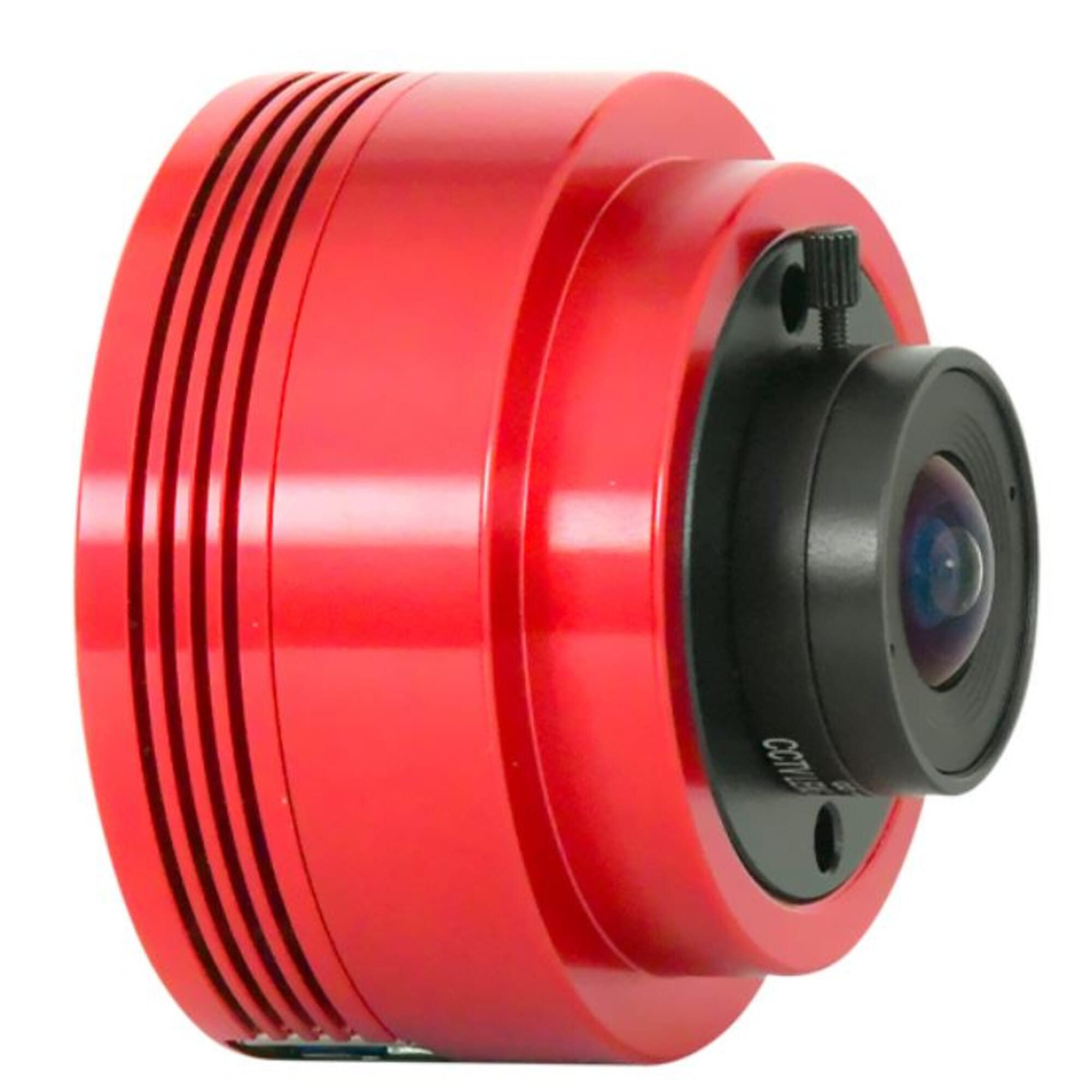

The camera is compact (126 g) and easy to mount via the T2 connector or included 1.25″ adapter. With USB 3.0, you enjoy a high frame rate of up to 45 fps, crucial for planetary image stacking. The ST4 port also enables autoguiding.

Application
The ZWO ASI 715 MC Color is designed for serious amateur astrophotographers who want to get the maximum detail out of their observations. Suitable for:

• High-resolution planetary photography (Jupiter, Saturn, Mars)
• Moon shots down to the smallest craters
• IR observations for more stable images in poor seeing conditions
• Small deep-sky objects such as nebulae and compact clusters (with stacking)

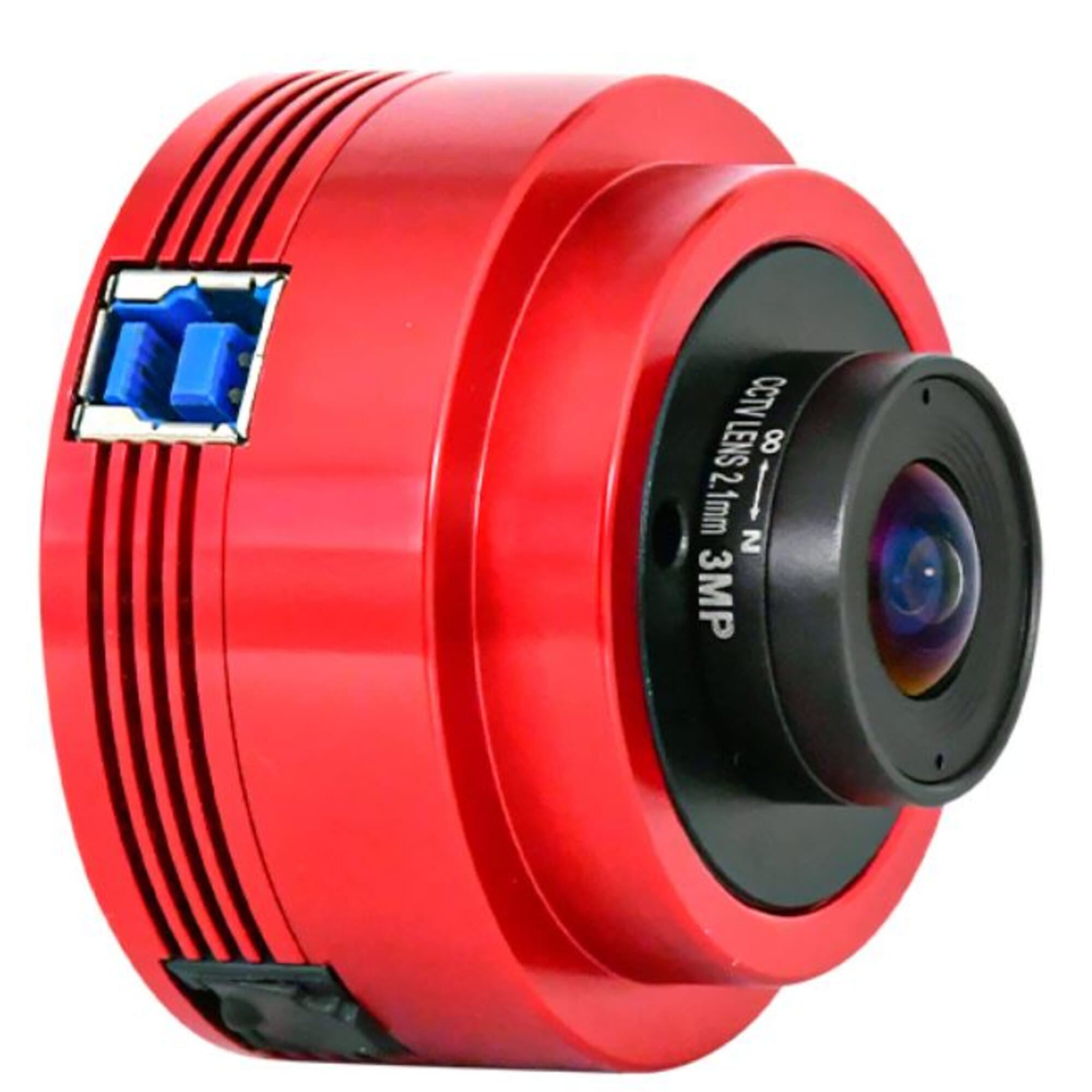

• All-sky time-lapse thanks to the included wide-angle lens

For optimal results, combine this camera with a stable equatorial mount and a telescope of high optical quality, such as models from Sky-Watcher, GSO or Celestron.

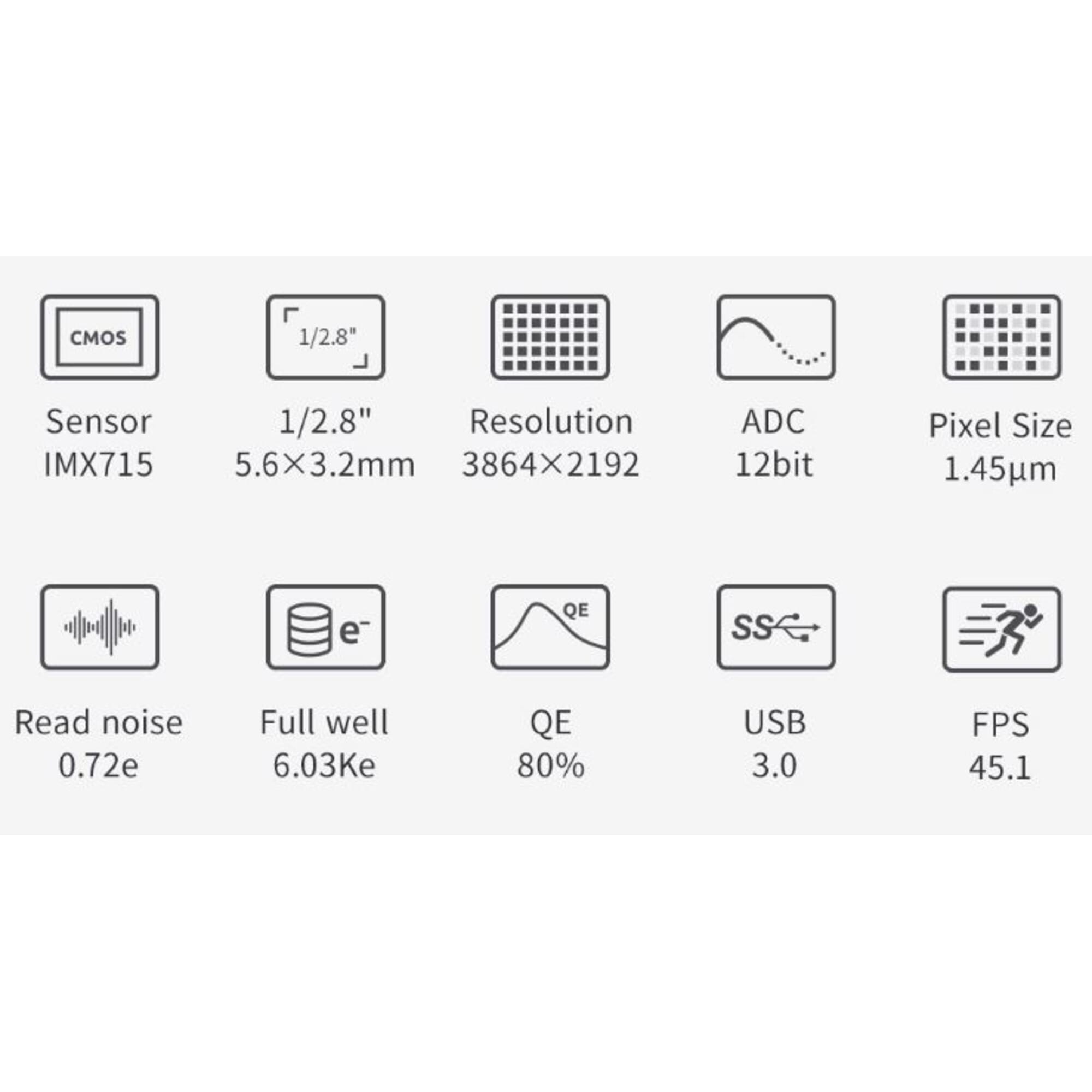

Specifications

• Sensor: Sony IMX715 CMOS
• Resolution: 3864 × 2192 (8.46 MP)
• Pixel size: 1.45 µm
• Sensor size: 5.6 × 3.2 mm
• Diagonal: 6.45 mm
• Bit depth: 12 bit
• Exposure time: 32 µs - 12 min
• Frame rate: up to 45.1 fps
• Reading noise: 0.8 - 6.9 e-.
• Full Well Capacity: 37,800 e-.
• Connection: M42 × 0.75 (T2)

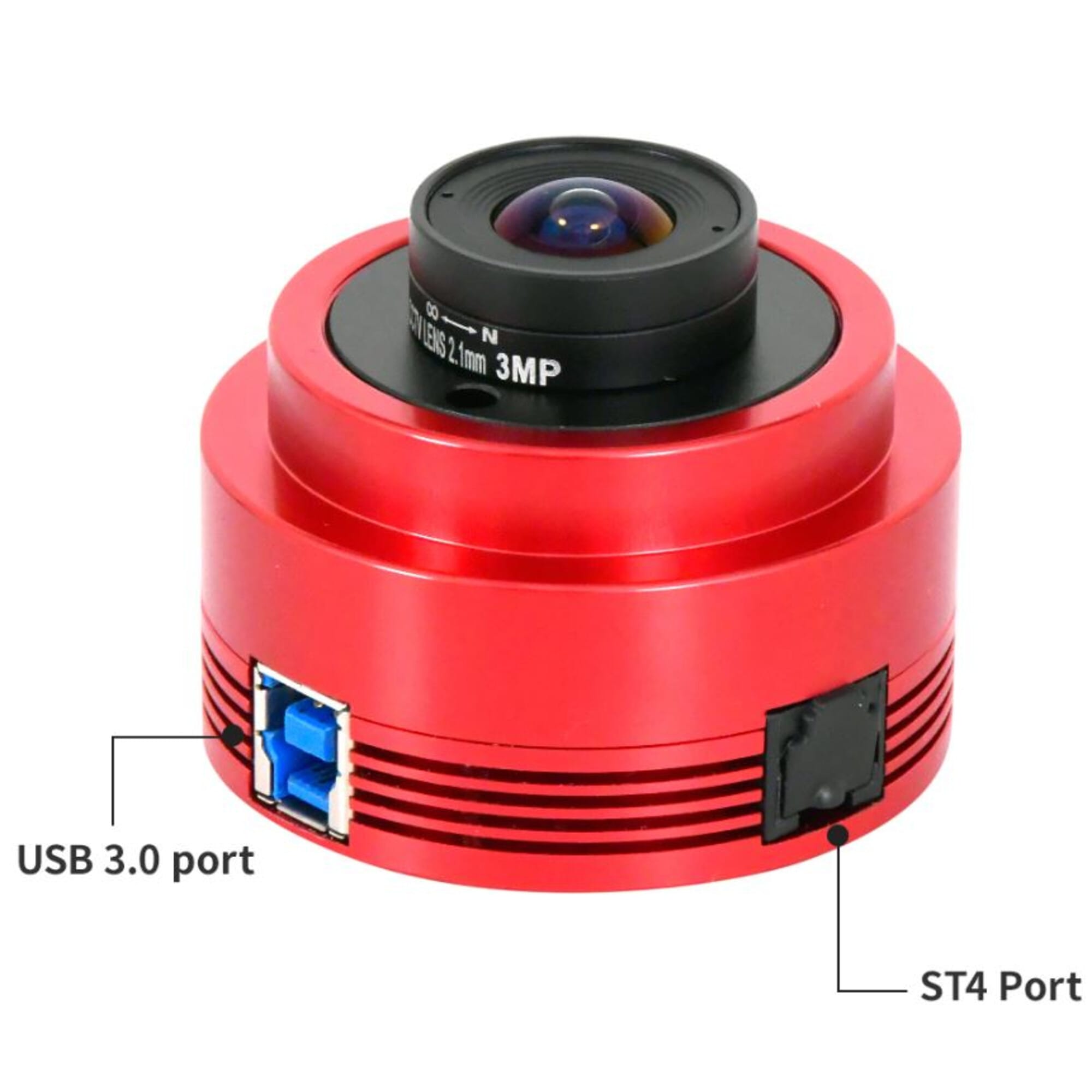

• Interface: USB 3.0, ST4 autoguiding
• Cooling: passive (PCS, no fan)
• Operating temperature: -5 °C to +50 °C

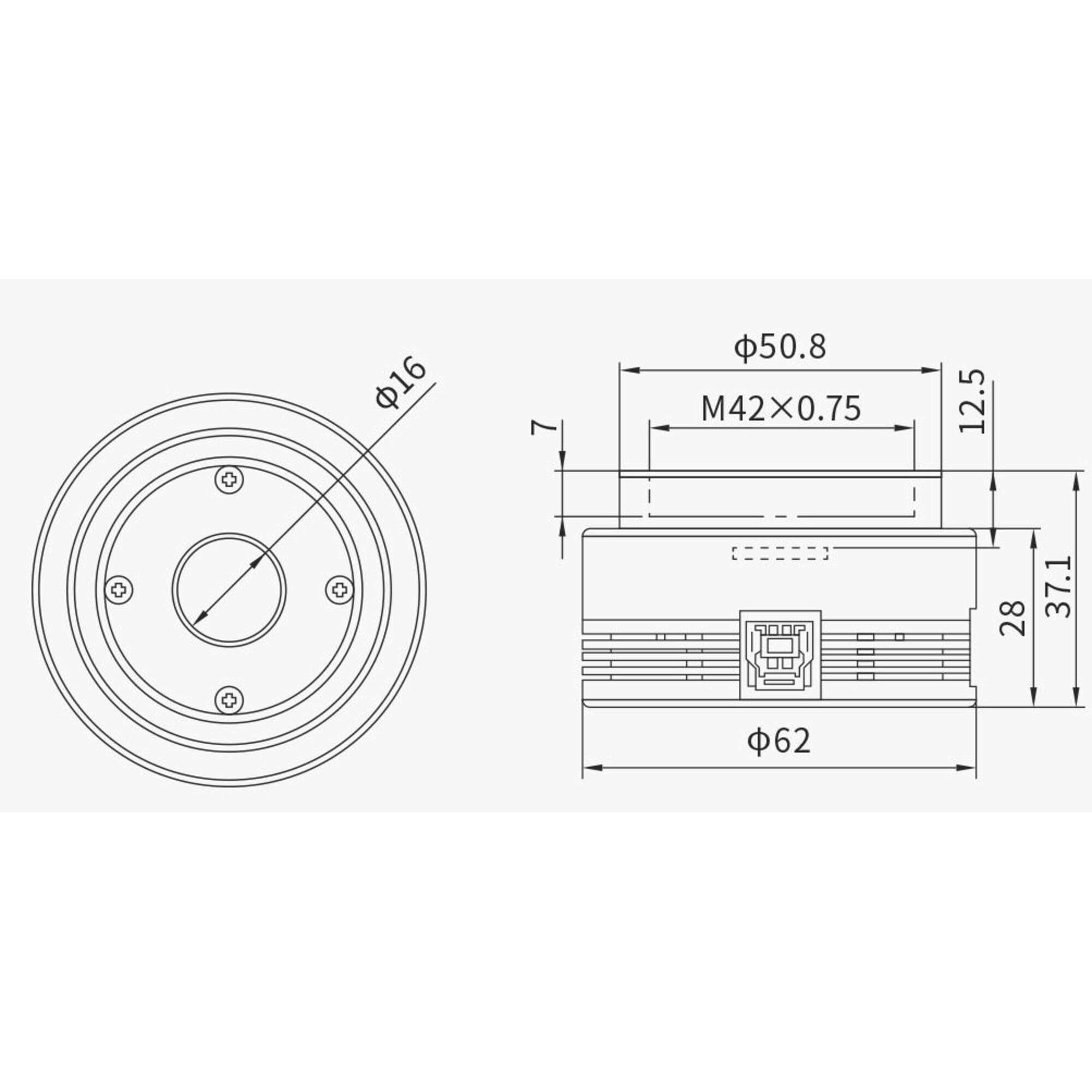

• Dimensions: Ø 62 mm × 35 mm
• Weight: 126 g
• Compatible with: Windows, MacOS, Linux

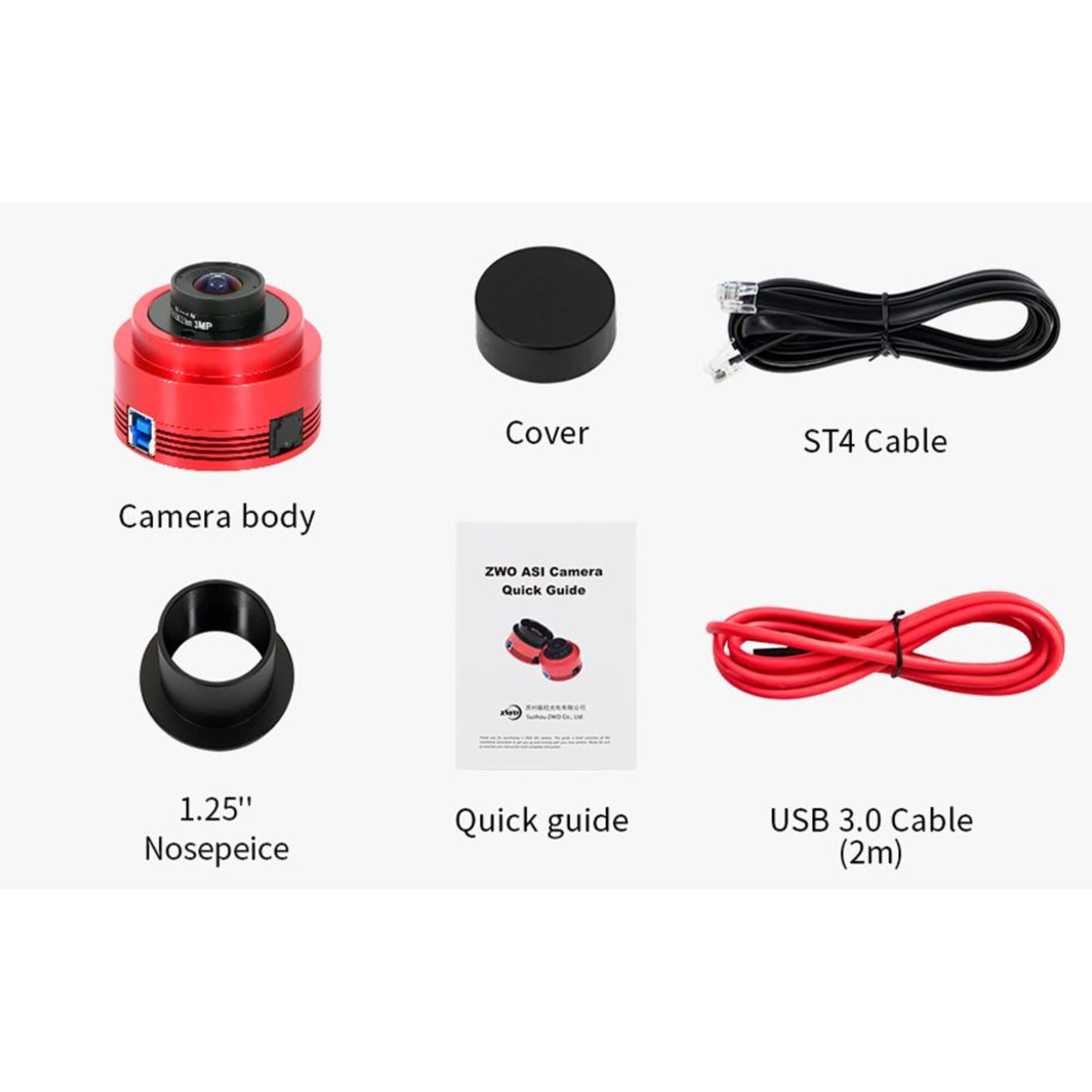

Scope of delivery

• ZWO ASI 715 MC Color camera
• T2 to 1.25″ adapter
• 1.25″ dust cap
• T2 to CS-mount adapter (pre-assembled)

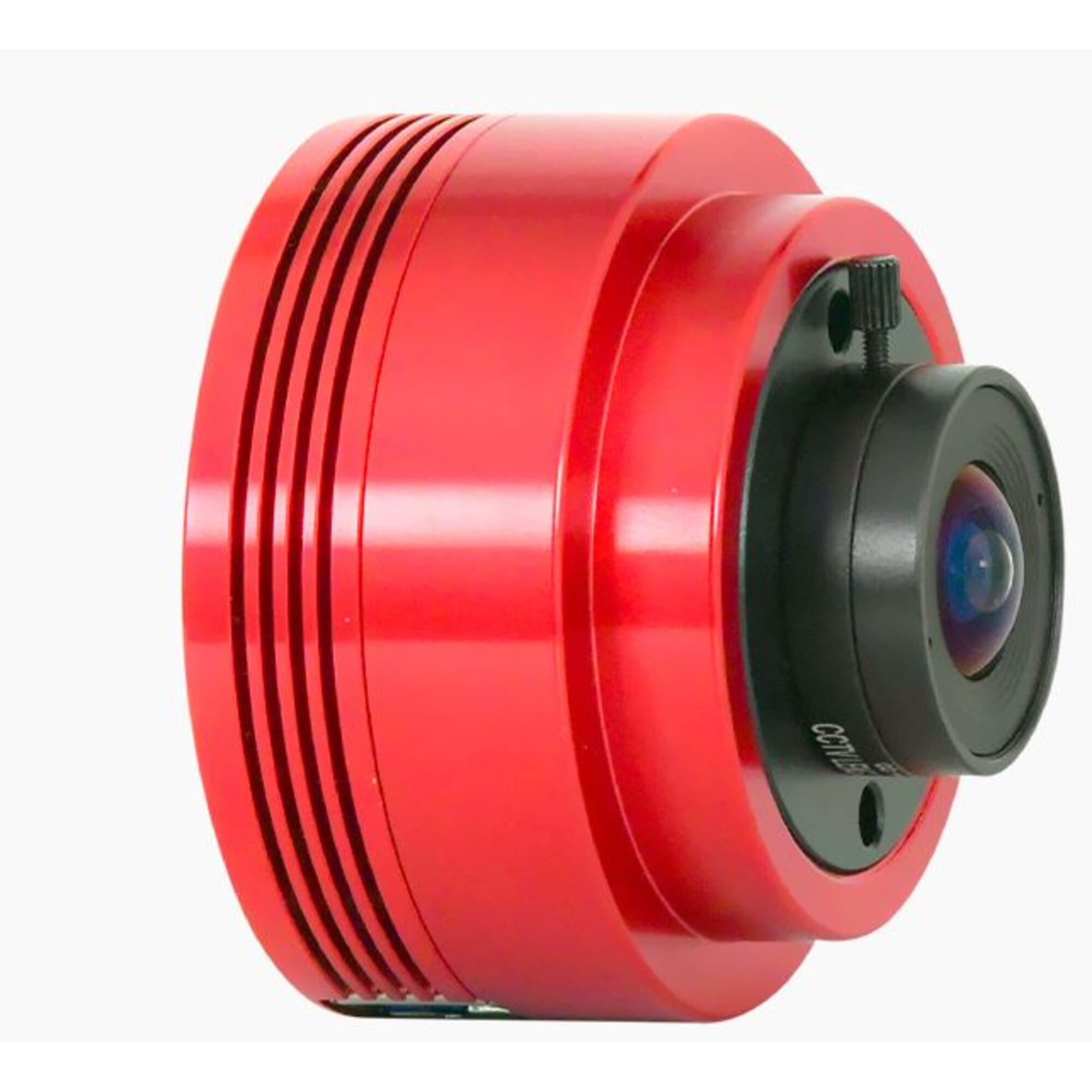

• Wide-angle lens (all-sky lens)
• USB 3.0 cable
• ST4 autoguiding cable
• Manual (English)
