ZWO Rotator CAA (Camera Angle Adjuster)

ZWO Rotator CAA (Camera Angle Adjuster)

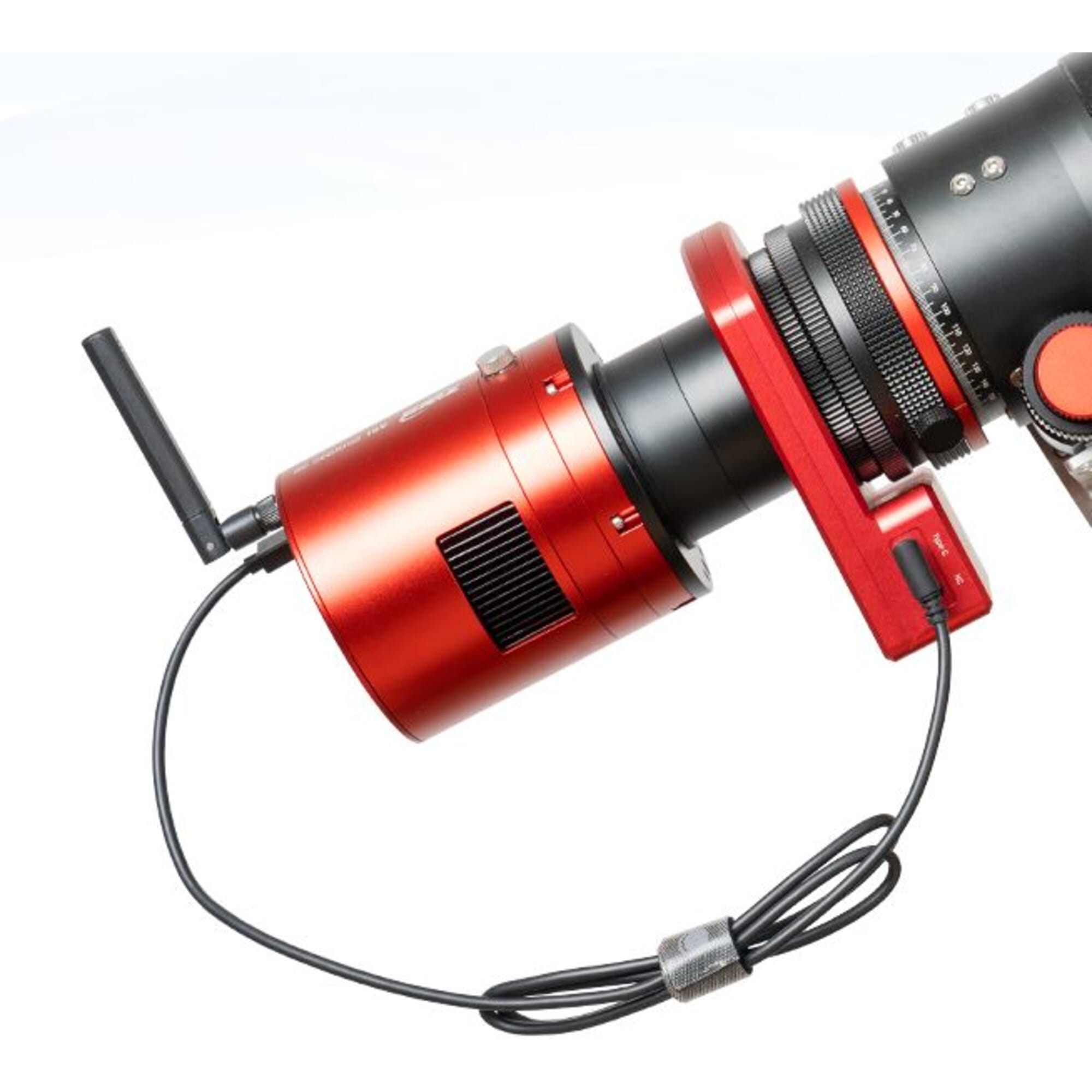

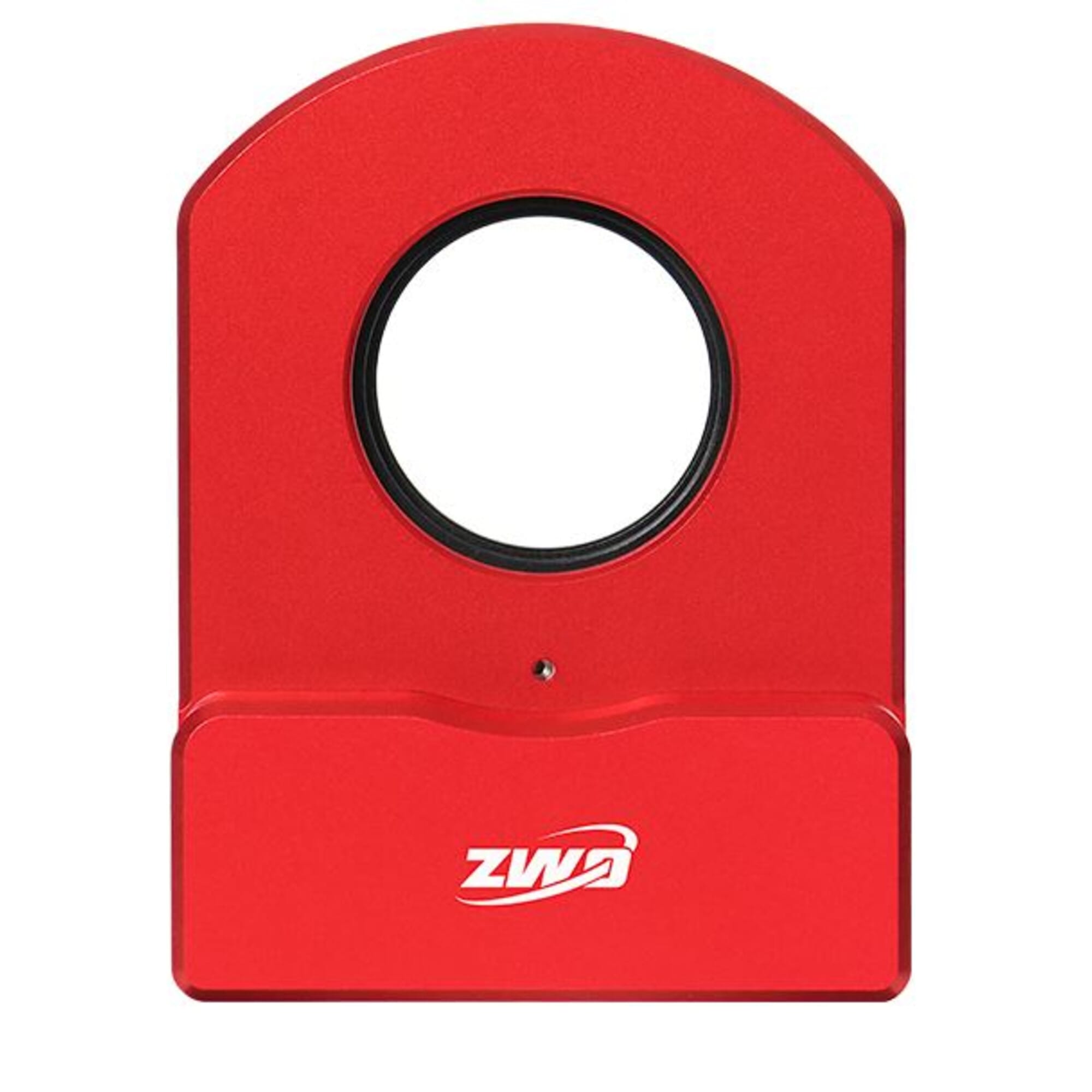

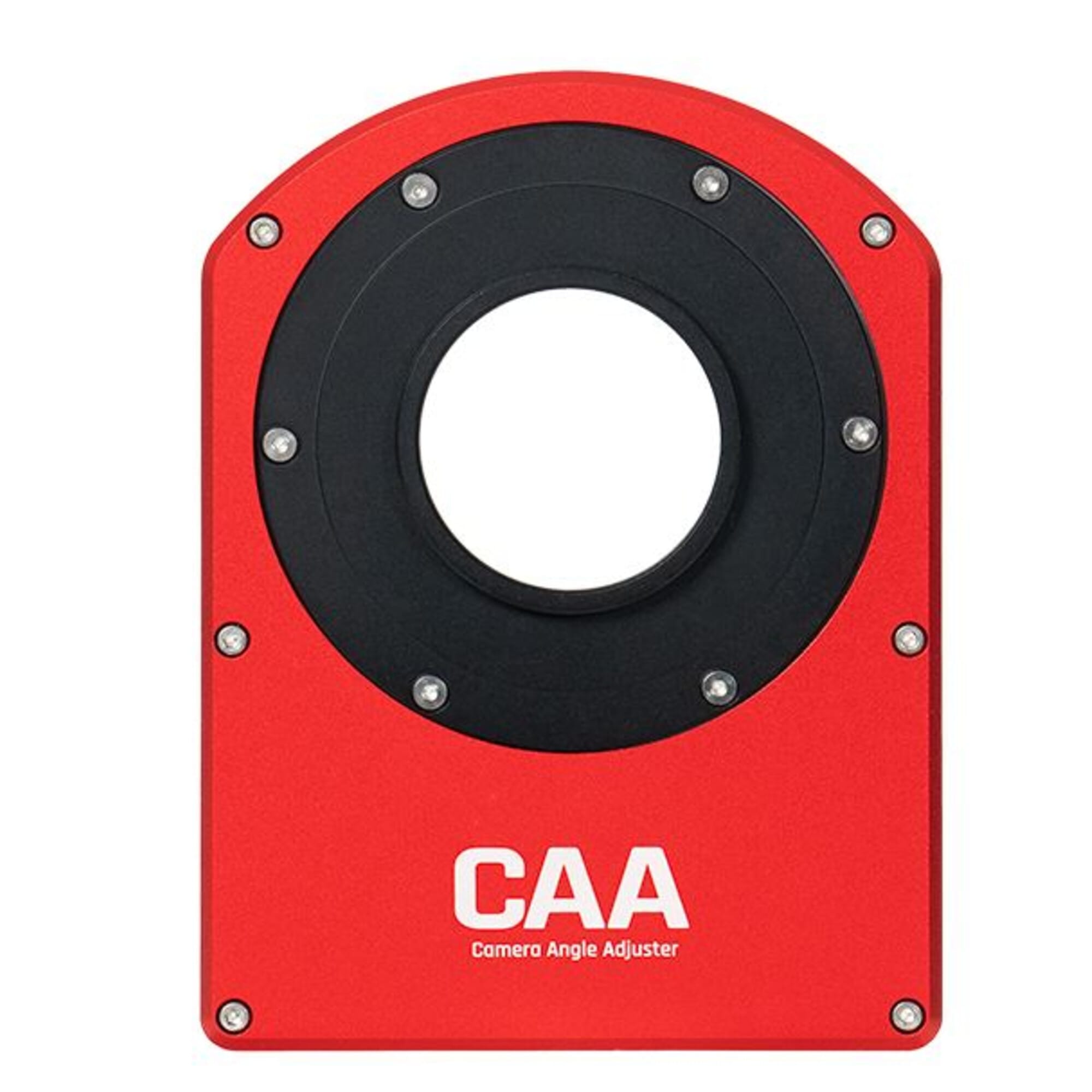

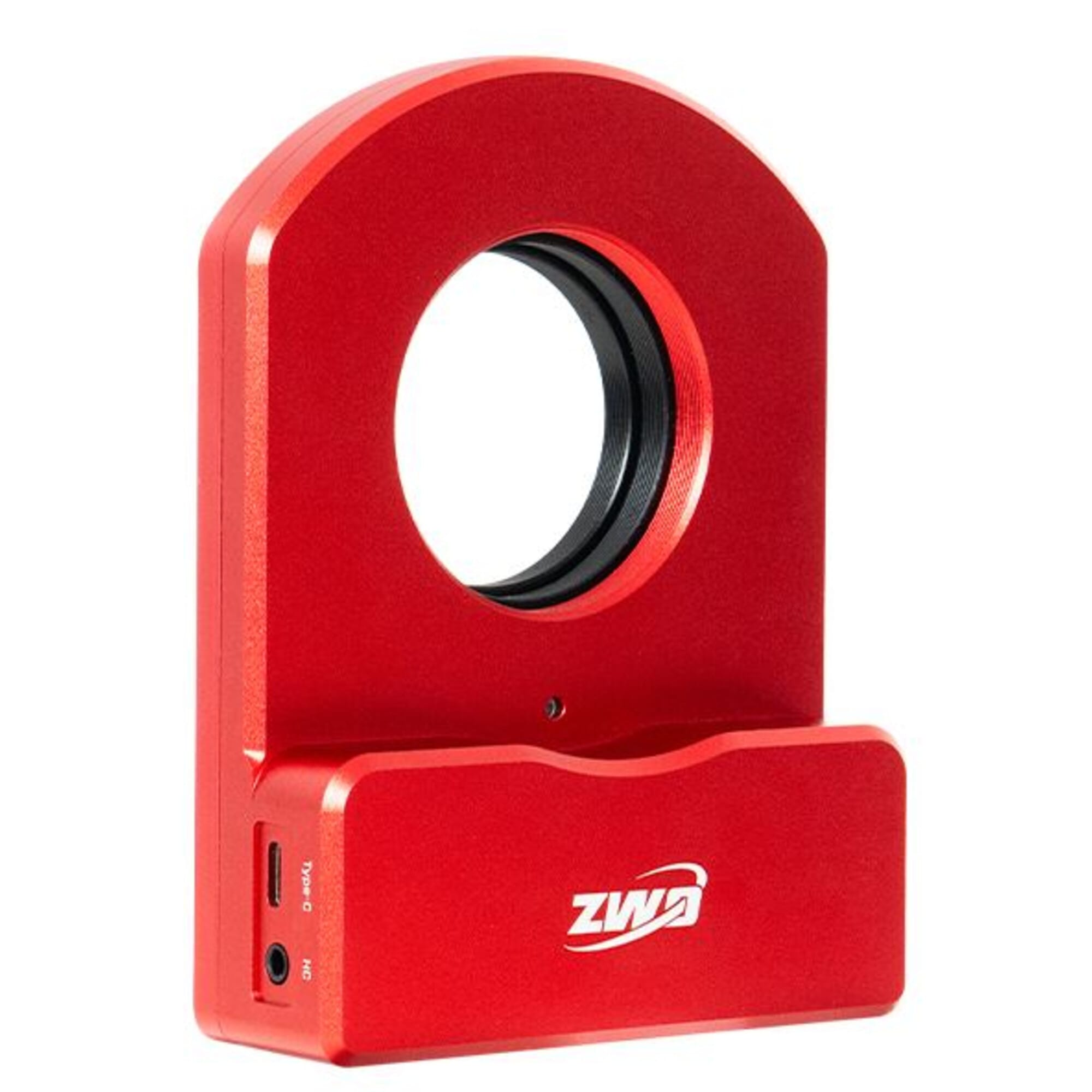

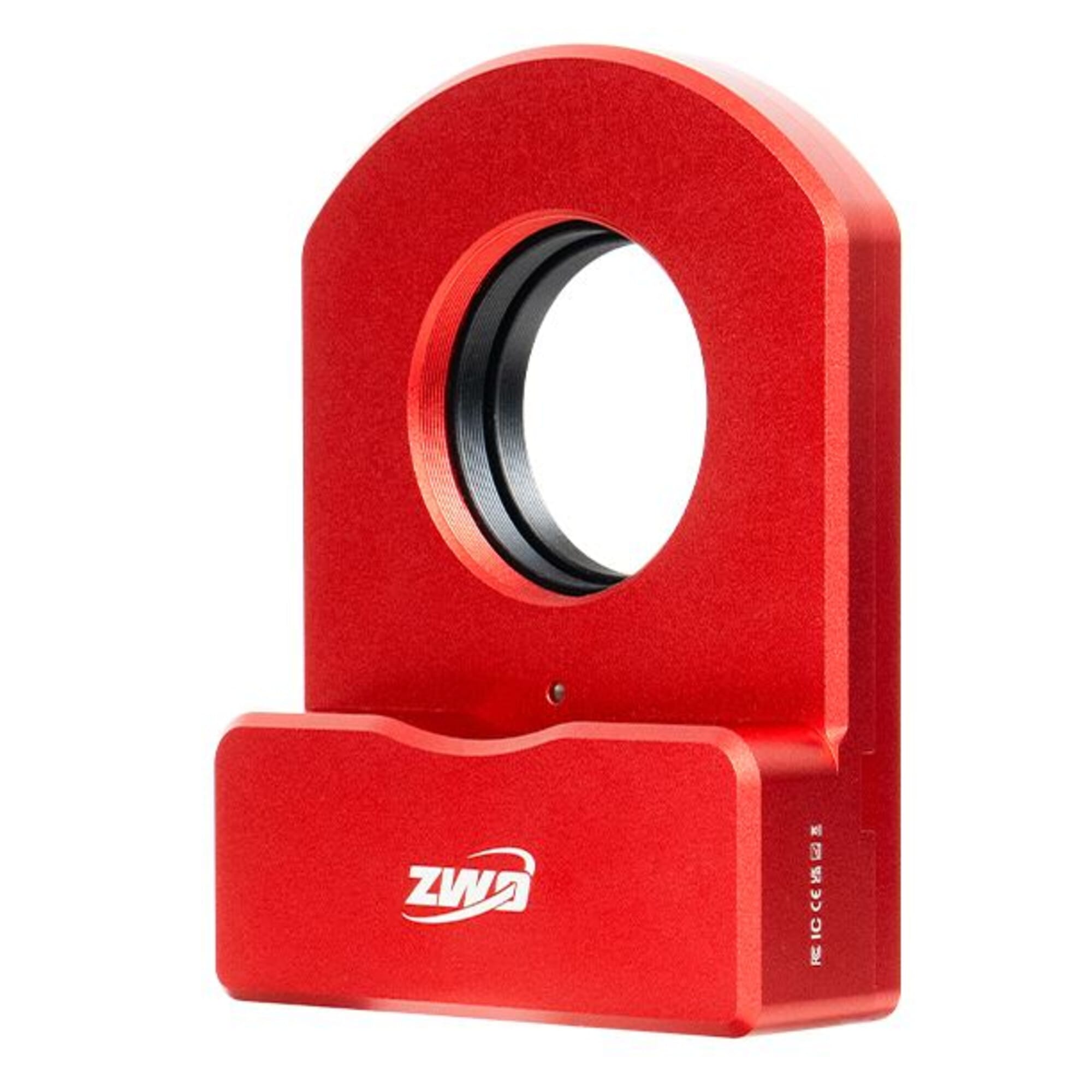

The ZWO CAA is an advanced electronic rotator that allows you to adjust your astro camera angle precisely and fully automatically. This gives astrophotographers maximum control over their image composition, without manual adjustment or cable stress.

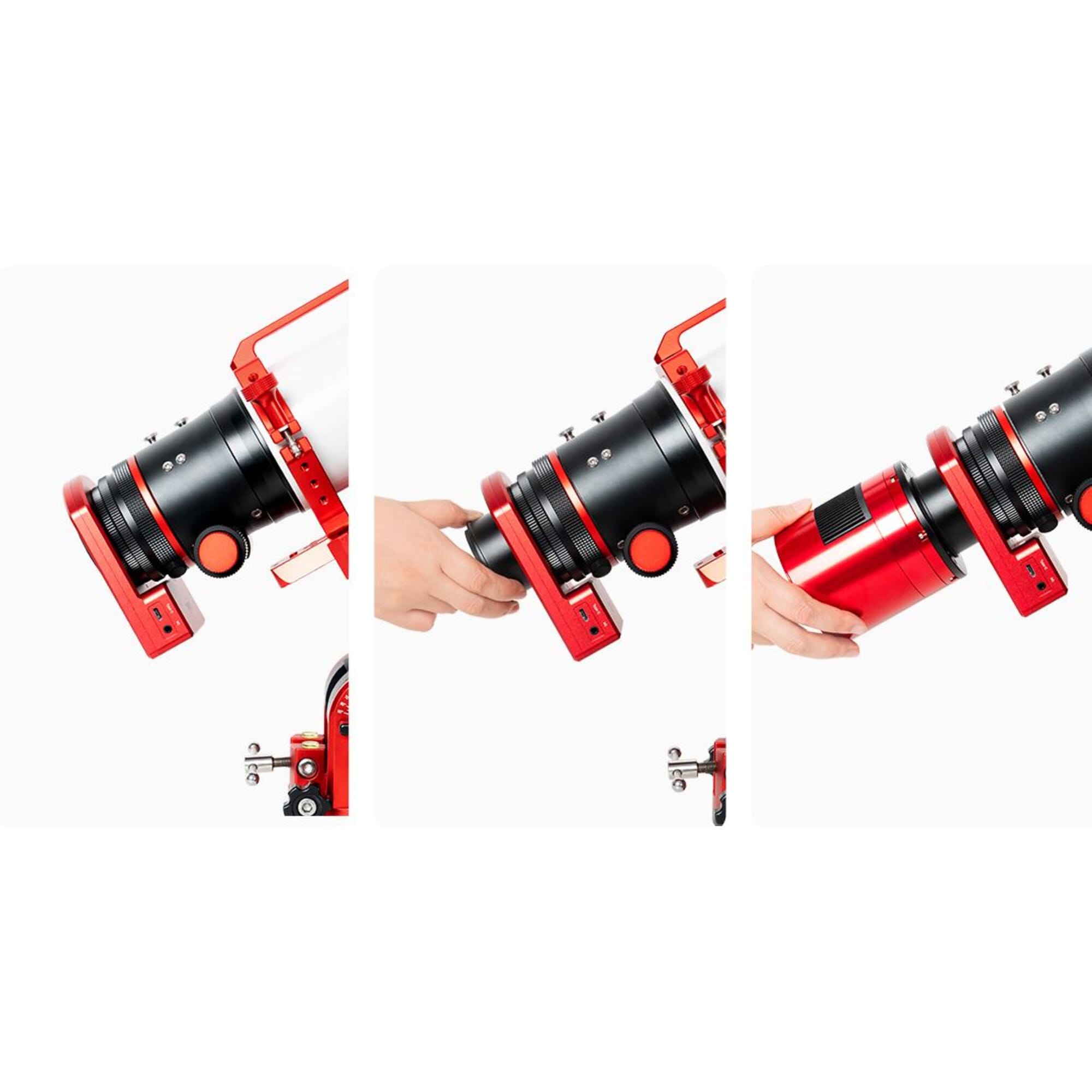

With a height of just 16.5 mm and weighing 465 grams, the ZWO CAA effortlessly replaces the standard ZWO M54 adapter. Made of anodized aluminum, it offers tilt-free rotation over 360° with positioning accuracy up to 0.02° per step – perfect for mosaics, framing deep-sky objects, or automatic rotation combined with plate solving.

The rotator is powered by a robust stepper motor, works seamlessly with ASIAIR, ASI Studio, and ASCOM, and easily connects via USB-C. With a load capacity of 5 kg, it’s suitable for most ZWO cameras with filter wheels and other accessories.

A must-have for any astrophotographer looking to automate their workflow and make a difference in framing and efficiency.

Application

✓ Automatic rotation of astro cameras
✓ Optimize image composition without physical rotation
✓ Perfect for mosaics or plate solving
✓ Compatible with ZWO ASIAIR, ASCOM and other automation software

Specifications

Capacity

• Load capacity: 5 kg
• Positioning accuracy: 0.1° (0.02° per step)
• Rotation range: 360°

Connections

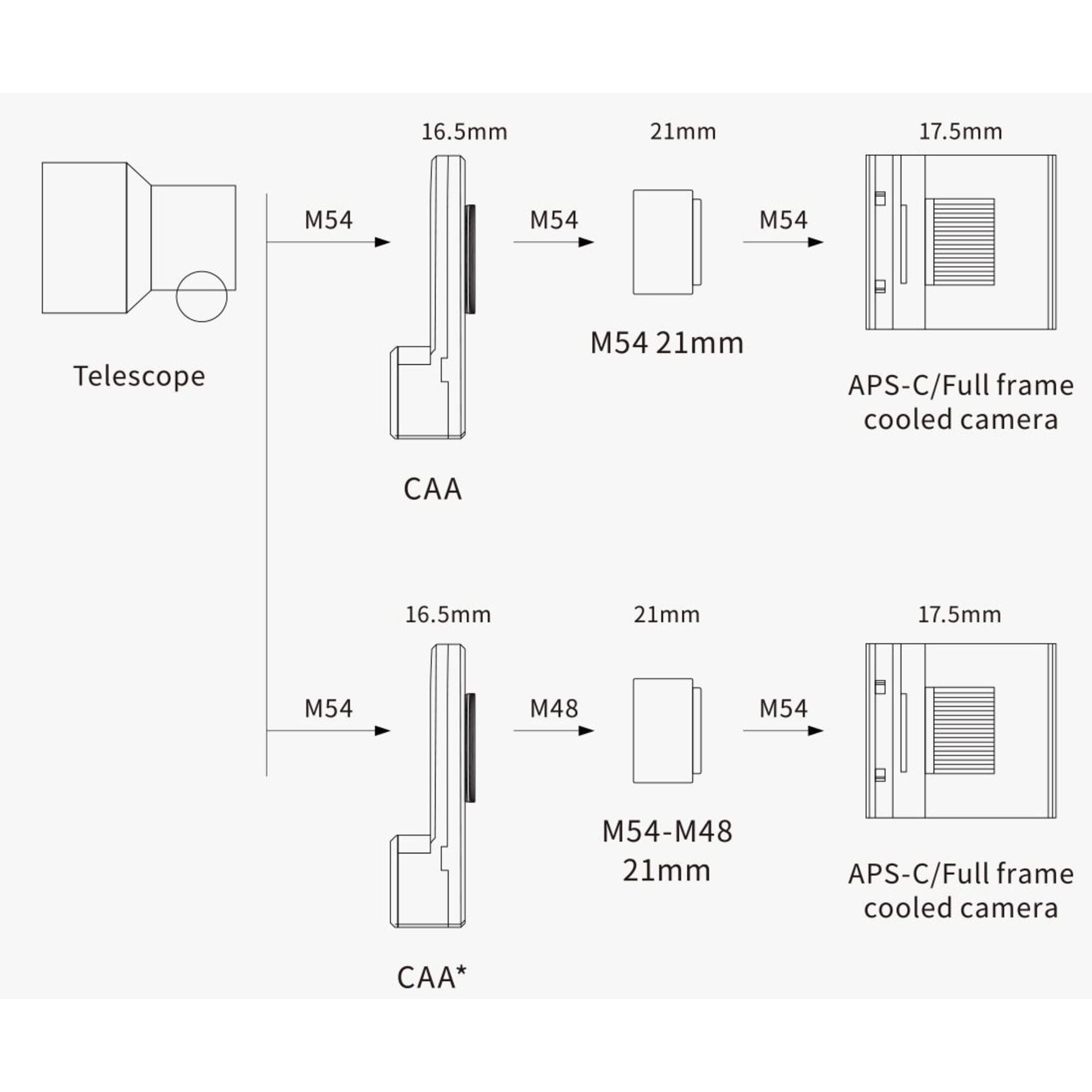

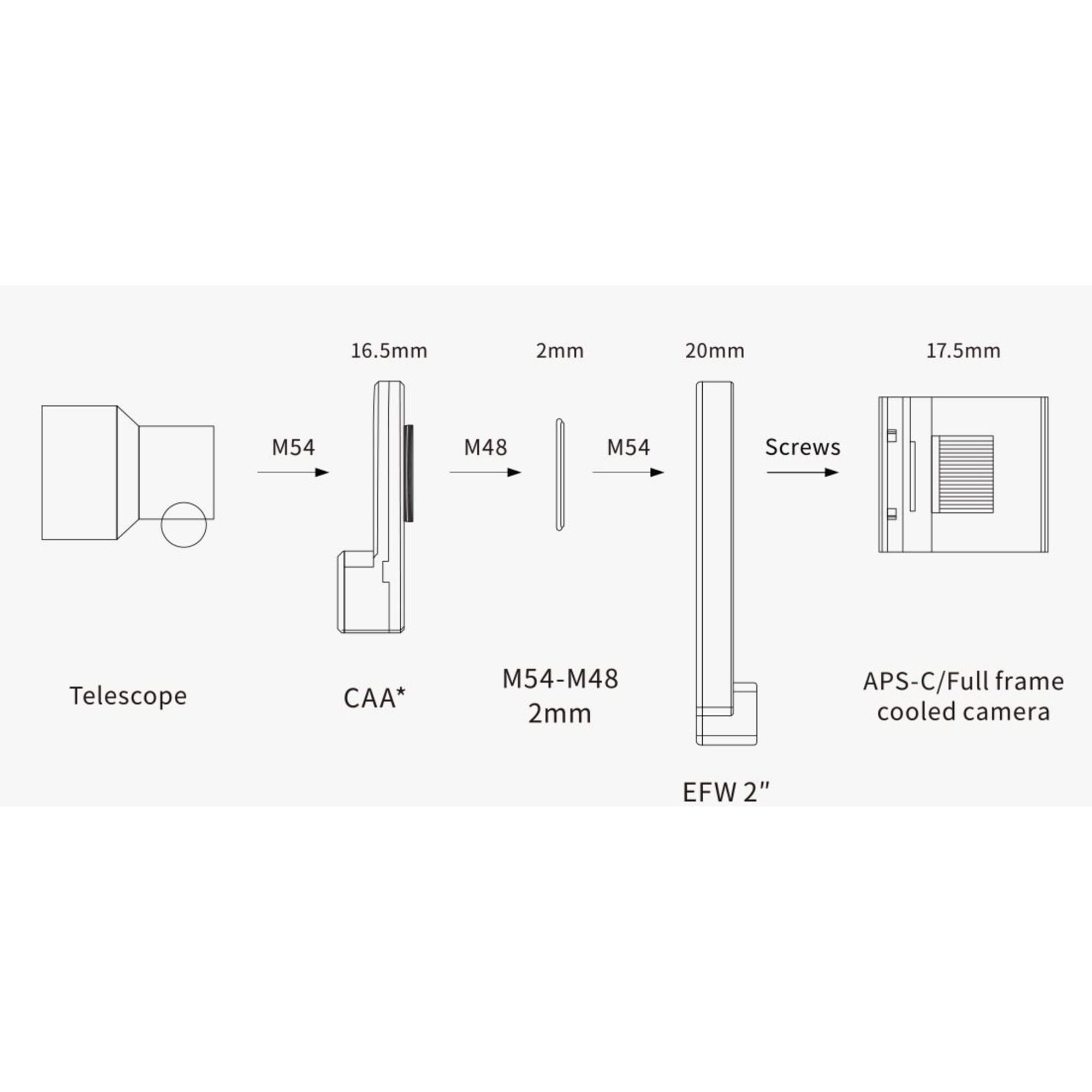

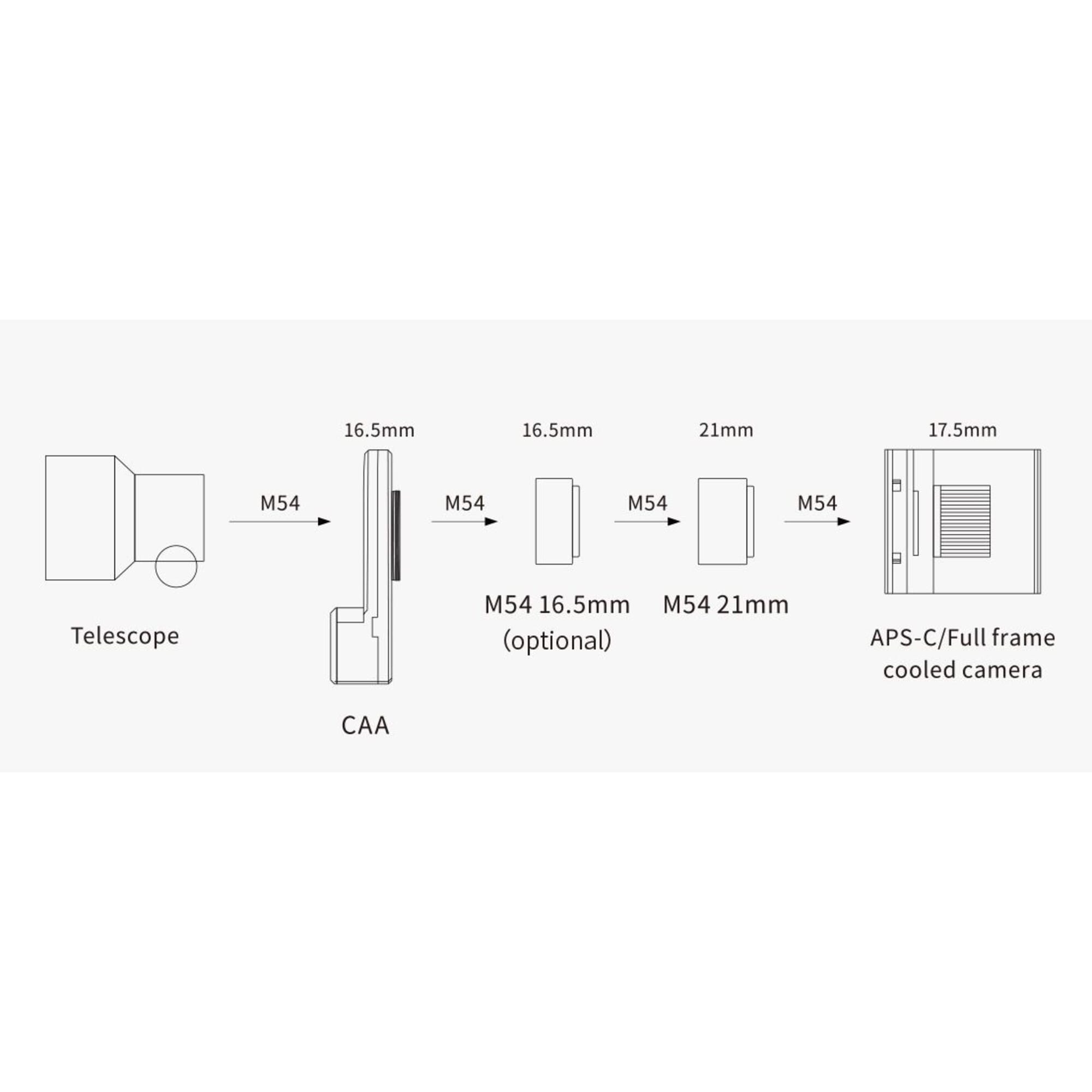

• Telescope side: M54
• Camera side: M54 + M48 adapter
• Interface: USB Type-C

Power software

• Input voltage: 5V
• Power consumption: 300 mA
• Compatible with: ASIAIR, ASI Studio, ASCOM

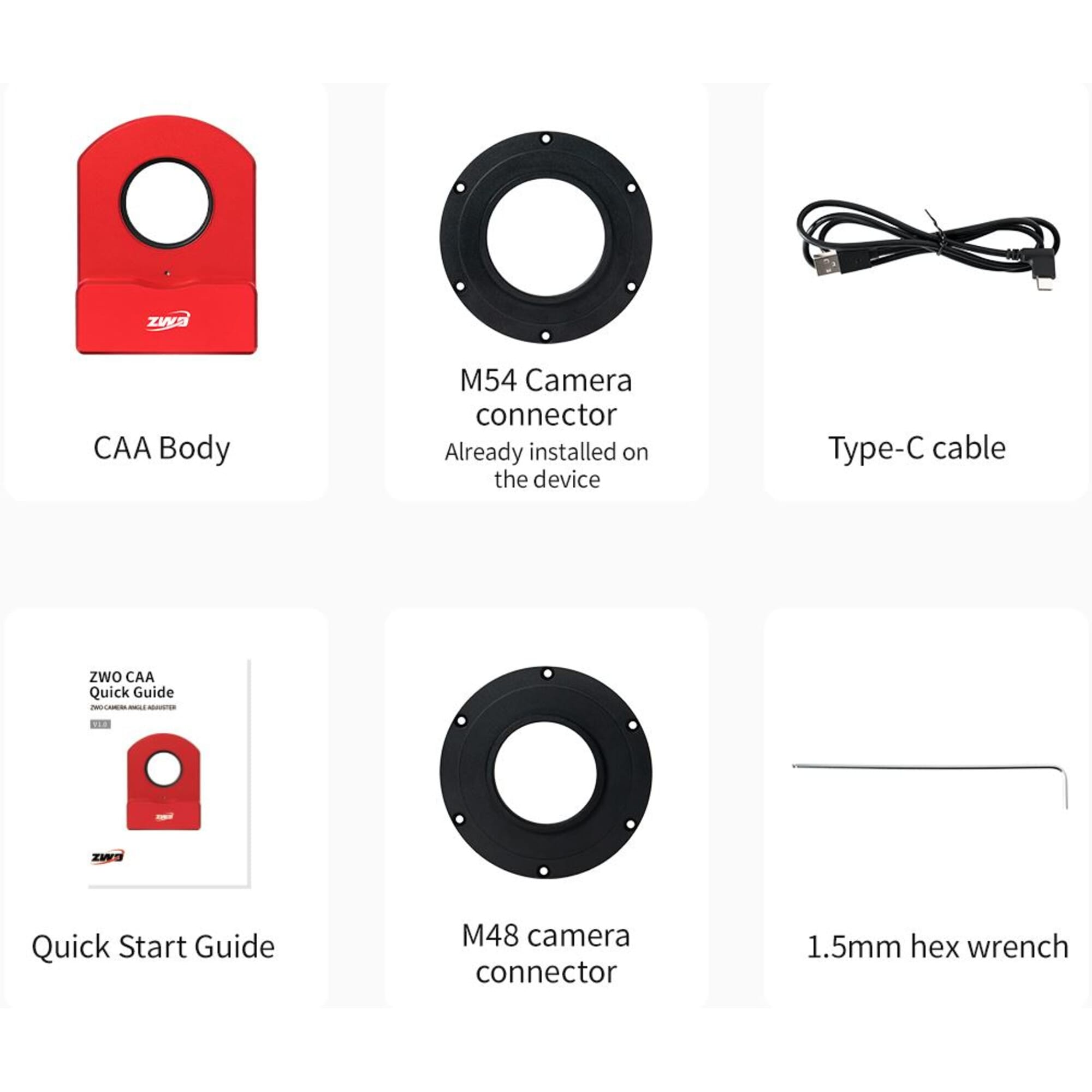

Equipment

• Motor: ✓ Yes (stepper motor)
• Cable: ✓ USB-C included
• Power adapter: ✗ Not included
• Rotatable: ✓ Fully electronic

General

• Height: 16.5 mm
• Weight: 465 grams
• Material: Anodized aluminum
• Color: ZWO red
• Type: Focuser accessory
• Design: Electronic rotator
